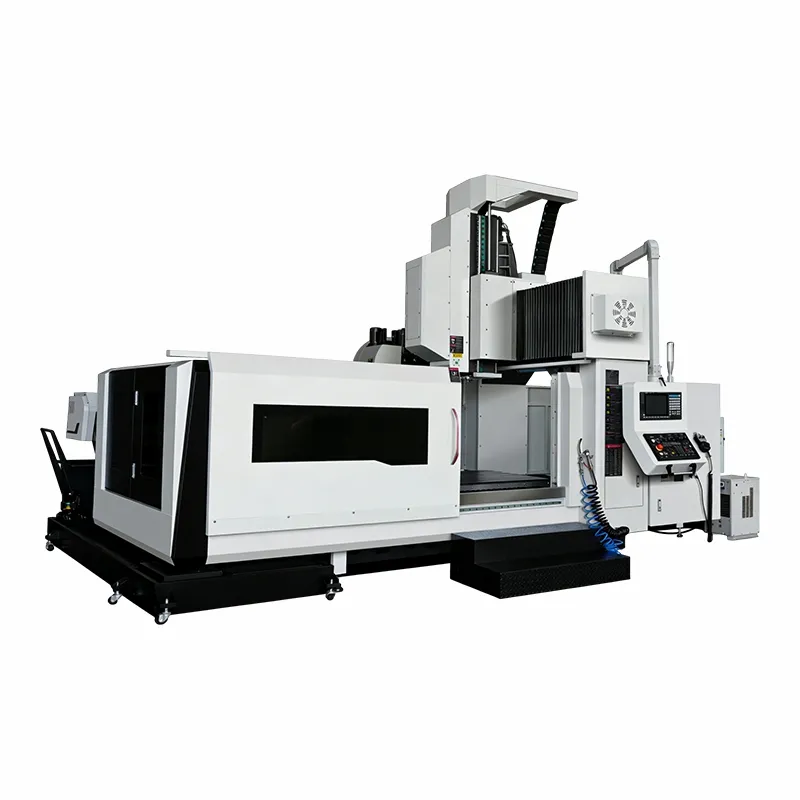

Gantry tshuab chaw GMC2012 ntawm Gantry Machine Center yog tsim los ua kom tau raws li qhov yuav tsum tau ua rau kev tuav thiab machining loj qhov chaw ntawm cov nplais. Nws muaj ob tus yam ntxwv: Ua ntej, Nws cov qauv tsim muaj cov kab ruaj khov; Qhov thib ob, Cov Qauv no tuaj yeem nthuav dav ntawm thaj chaw ua haujlwm. Feem ntau yog siv los ua ntau yam hlau, suav nrog carbon steels, alloy steels, aluminium alloys, pwm steels thiab cam khwb cia hlau; muab cov txheej txheem ua haujlwm ruaj khov, muaj txiaj ntsig zoo rau qhov loj - qhov loj me hauv kev tsim cov cuab yeej siv tshuab, cov khoom siv dav hlau, tsheb ciav hlau thiab cov khoom siv molding.
Khoom zoo
Loj Load-Bearing & Extended Processing Range
Milling tshuab qauv GMC-2012 muaj qhov loj - ua haujlwm - cheeb tsam loj ntawm 1000mm × 2000MM; muaj peev xwm dais ntau tshaj 3 tons; nws tshaj li ntawm ntau lub tshuab ntsug lossis gantry lathes. X/Y/Z-axis txav yog 2100x1200x700mm; Qhov dav ntawm gantry yog 1230mm thiab qhov siab qhov siab yog 860mm los xyuas kom meej tias nws tuaj yeem ruaj khov ua haujlwm loj heev-cov khoom xws li cov pwm loj, cov qauv hnyav, cov phaj hlau ntev.A tsau-Kem gantry kev npaj bears tsawg deformation ntawm siab loads kom ruaj khov ua haujlwm loj.
High Rigidity & ruaj khov Precision Retention
Lub gantry beam, txaj thiab kem txhua tus tau txais cov khoom zoo siab -HT300 cam khwb cia hlau los ntawm kev siv tshuab molding tom qab ntau yam kev ntxhov siab- tshem tawm cov txheej txheem kho kom so kom txaus nyob rau hauv -situ stresses . Qhov kaw- lub thawv hom nyob rau hauv kev tsim kho kom zoo dua tom qab ua tiav qhov kev txiav txim siab - ntsiab lus qhia tau hais tias kev txhim kho zuag qhia tag nrho stiffer thiab damped yam ntxwv piv rau thawj version. Tau nruab nrog BT40 siab -precision ntxaiv, ua ntej- nruj C3 qib precision pob ntsia hlau, thiab hnyav- txoj haujlwm linear guideway; Txoj hauj lwm yuam kev nyob rau hauv thaj tsam ntawm -0.0075 mm (x/y kev taw qhia) mus rau +0.015 mm (z-direction), Rov ua dua qhov tseeb ± 0.005mm .
Txiav txiav & ntau yam kev ua haujlwm
GMC2012 siv 11/15 kW loj zog xa xov spindle; Nws spindle tig nyob rau hauv thaj tsam ntawm 40-8,000 r / min; Muaj peev xwm ua tiav ob qho tib si sib sib zog nqus-kos cov txheej txheem siab- lub zog steel cov ntaub ntawv thiab ultra-kev kub ceev machining aluminium alloy ua haujlwm- pieces . Txheem los nrog ob-dimensional 24- chaw nres tsheb- npab- hom ntawv xov xwm, thiab cov cuab yeej ceev- hloov lub sijhawm tsuas yog peb vib nas this; Ntau- txheej txheem ua haujlwm tas mus li tuaj yeem ua tiav los txo lub sijhawm tsis ua haujlwm. Lub spindle muaj kev ua haujlwm ntawm milling, tho txawv, drilling, tapping thiab txee{19}} tho txawv; txoj cai-lub kaum sab xis Milling taub hau los yog plaub-Axis System muaj los paub txog ntau lub kaum sab xis thiab tsib-sab ua haujlwm hauv ib qho clamping.
Intelligent Configuration & Easy Maintenance
Nruab nrog lub tshuab CNC yooj yim (xaiv tau Fanuc, Siemens lossis GSK) uas tuaj yeem ua peb -axes txuas, NC kev ua haujlwm hauv online thiab kev paub txog qhov tsis raug, txhawm rau ua kom yooj yim rau kev khiav haujlwm thiab txo tus neeg teb xov tooj kev nkag mus. Lub tshuab tau raug teeb tsa nrog lub tshuab tsis siv neeg concentrated lubricating system; Spindle-ring-txias thiab ntxaib-kauv-chip- conveyor kuj tau raug teeb tsa los txuas ntxiv lub neej ntawm qhov tseem ceeb thaum lav 24/7 kev ua haujlwm tsis tu ncua. Modular hluav taws xob tsav qauv tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm kev ntxiv cov haujlwm hloov pauv hauv kev txhim kho yav tom ntej.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
GMC2012 |
|
Lub rooj loj (W * L) |
mm |
1000*2000 |
|
X axis taug kev |
mm |
2000 |
|
Y axis taug kev |
mm |
1200 |
|
Z axis taug kev |
mm |
700 |
|
Gantry dav / dhau qhov siab |
mm |
W:1230/H:860 |
|
Rooj load |
t |
3 |
|
Qhov deb ntawm qhov ntswg spindle thiab lub rooj saum npoo |
mm |
100-800 |
|
T qhov (tus naj npawb -dav * suab) |
- |
7-22*140 |
|
Spindle taper |
- |
BT40 |
|
Spindle ceev |
r / min |
8000 |
|
Kev nrawm nrawm nrawm |
m/min |
24/24/24 |
|
Txiav pub ceev |
m/min |
10 |
|
Main lub cev muaj zog |
kws |
11/15 |
|
Tool magazine |
Arm 24 |
|
|
Positioning raug |
mm |
X/Y 0.0075 Z 0.015 |
|
Rov ua dua qhov tseeb |
mm |
0.005 |
|
Zuag qhia tag nrho (L * W * H) |
mm |
4900*3200*3600 |
|
Tshuab hnyav (kwv yees) |
t |
12 |
Tshuab Txheem Paub meej
MACHINE CONSTRUCT
Siab zog siab zooHT300nrum hlau
TSEEM CEEB SYSTEM
Txheem: syntec tswj qhov system
TAIWAN PRECISION SPINDLE
1. Taiwan spindle
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.TaiwanOKADA arm 24 tool magazine.
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 nto moo hom txhuas ntsia hlau,
2. txhuas ntsia hlau bearing siv SKF los yog NACHI bearing,
3. coupling YC txuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERGTsis siv neeg centralized lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1. nrog Schneider kev ruaj ntseg hluav taws xob Cheebtsam
2. Ceev ntsaws raws li tus qauv
Txhua lub tshuab dhau Renishaw laser interferometer kuaj thiab ntsuas ballbar
Daim ntawv thov Scenario
Loj Pwm & Tuag Manufacturing:Dav siv los ua cov txheej txheem loj - nplai pwm blanks, pwm puag thiab pwm inserts, nrog rau loj heev - stamped pwm, tuag- casting pwm thiab yas txhaj pwm. GMC2012 txoj haujlwm loj- thooj loj thiab muaj zog rigidity yog haum rau kev ntxhib los yog ua tiav machining ntawm loj- pwm loj los ua kom yooj yim rau cov txheej txheem thib ob thiab nce tus nqi ntawm cov khoom.
Heavy Machinery & Engineering Machinery:Siv los ua cov txheej txheem loj loj rau cov tshuab hnyav thiab cov tshuab engineering, suav nrog lub cev hydraulic valve, txhawb rooj zaum, chassis Beams, thiab Engineering Machine Arms. Cov khoom no muaj qhov ntim loj thiab hnyav, thiab lub tshuab muaj peev xwm 4-tuj thauj khoom thiab kev mus ncig txuas ntxiv ua tau raws li lawv cov kev xav tau.
Rail Thauj & Aerospace:Haum rau kev ua cov khoom loj hauv kev tsheb ciav hlau (xws li kev tsheb ciav hlau, tsheb ciav hlau qhov chaw) thiab aerospace (xws li cov qauv dav hlau, cov khoom siv cav loj). High precision thiab stability yog ua tiav los xyuas kom meej tias cov khoom tseem ceeb no ua tau raws li cov kev cai nruj ntawm kev lag luam.
Automotive Loj Qhov Chaw Ua Haujlwm: Rau kev ua cov khoom loj loj, xws li lub cev thav duab, cov cav loj loj thiab cov kab sib kis. Kev muaj peev xwm txiav tau zoo thiab ntau- cov txheej txheem txheej txheem yuav tsum tau ua kom tau raws li qhov loj - nplai Ntau lawm cov kev cai ntawm kev lag luam tsheb rau ib feem.
Industrial Hlau & Foundry Khoom:Ib qho zoo haum rau loj muaj hlau phaj, steel ncej thiab nyuaj castings. Nws loj - hom kev muaj peev xwm ua tau thiab hnyav -load bearing ua rau nws tsim nyog rau kev tsim khoom tsim thiab kev tsim khoom tsim khoom, tuav ntau yam loj - cov kev xav tau ua haujlwm.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm gantry tshuab chaw GMC2012?
A: Workbench dimension: 1000 * 2000mm, lub peev xwm thauj khoom tsis txwv tshwj xeeb rau cov qauv ua haujlwm no. X / Y / Z axis mus ncig yog 2100 × 1200 × 700mm, gantry dav 1230mm, dhau qhov siab 860mm. Spindle ceev ntau yam: 40-8000r/min; X-Y kev taw qhia qhov tseeb ± 0.0075mm, Z-kev taw qhia txoj haujlwm yuam kev tswj Tsawg dua lossis sib npaug ± 0.015mm; Repeat Positioning Accuracy ± 0.005mm. Spindle Lub cev muaj zog: 11/15kw; Tool Magazine Peev Xwm: 24 Chaw nres tsheb.
Q: GMC2012 puas tuaj yeem hloov kho nrog 4-axis system lossis cov ntawv xov xwm loj dua?
A: Ib qho kev xaiv rau kev txhim kho plaub -axis CNC indexing rooj uas tso cai rau ua ntau lub kaum sab xis ntawm kev ua haujlwm ntawm cov khoom nyuaj. Ib daim ntawv xov xwm 24- chaw nres tsheb hom cuab yeej uas tuaj yeem nthuav dav los tuav ntau cov cuab yeej raws li qhov xav tau rau cov txheej txheem kuj muaj.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab nws txawv li cas ntawm ntsug machining chaw?
A: Feem ntau cov txheej txheem hlau; suav nrog carbon steel, alloy steels, aluminium alloys, pwm steels thiab cam khwb cia hlau, thiab lwm yam Nws kuj tuaj yeem tiv taus ntau dua.
Q: Yuav ua li cas tom qab- kev muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Ib qho - lub sijhawm lav tus qauv, ntxiv rau TUV daim ntawv pov thawj. Peb muab 24-teev- ib- hnub online kev pabcuam, hauv- kev pabcuam kho, muab cov khoom siv tiag tiag, kev cob qhia tus neeg ua haujlwm pub dawb, thiab kuaj xyuas video ua ntej xa khoom. Muab los ntawm engineers nyob rau ntawm qhov chaw txais thiab Installation theem.
Q: Q5: Dab tsi yog qhov loj thiab qhov hnyav ntawm lub tshuab, thiab nws puas yooj yim rau nruab?
A: Kwv yees li 4300 x 3200x3600 millimeters hauv Qhov Loj, kwv yees tag nrho qhov hnyav yog nyob ib ncig ntawm 13.5 tons. Muab ib daim ntawv qhia kev teeb tsa rau cov neeg siv khoom tshiab thiab cov kws tshaj lij los pab lawv hauv kev txhim kho kom raug; Kuj tseem muaj nyob rau ntawm -site Installation Service Option muaj.
