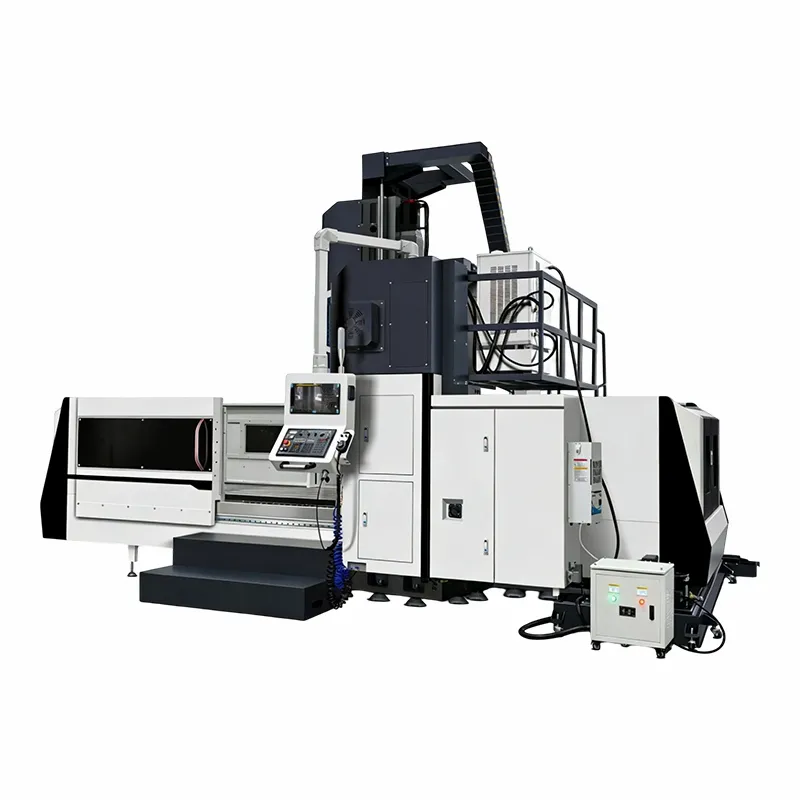

Gantry milling tshuab GMC1614 hom Gantry milling tshuab, uas tuaj yeem ua haujlwm siab - qhov tseeb thiab hnyav - cov haujlwm ua haujlwm nrog nruab nrab - ua haujlwm loj - pieces. Cov qauv me me gantry uas tsis muaj qhov ua kom zoo ruaj khov-Beam gantry qauv, loj-spanning, siab-load-cov kabmob muaj peev xwm thiab kev ua haujlwm yooj yim. Nws thawj daim ntawv thov cheeb tsam suav nrog kev ua ntau yam ntawm cov ntaub ntawv hlau, suav nrog carbon steel, alloy steel, aluminium alloys, pwm steels, thiab cam khwb cia hlau; Nws tuaj yeem ua lwm yam tsis yog{11}}cov ntaub ntawv hlau, xws li engineering plastics; Ua tau zoo, meej, txhim khu kev qha Kev daws teeb meem rau kev tsim khoom siv tshuab, ua pwm, kev lag luam aerospace, thiab kev tsheb ciav hlau.
Khoom zoo
Dav dav & Muaj zog Load-Bearing Capacity
GMC1614 muaj qhov dav dav ntawm 1450 hli thiab qhov chaw ua haujlwm loj ntawm 1600 × 1200mm; nws cov qhab nia nqa qhov hnyav tshaj qhov me me gantry hom thiab ntsug machining chaw. Qhov ntev, dav thiab qhov siab hauv X-Y-Z cov lus qhia tuaj yeem ncav cuag 1600 mm x 1400 mm x 800 mm; Txoj kev hla- dhau ntawm qhov deb ua tau raws li 920 mm (qhov tsawg kawg yog 120 mm) yuav tsum tau ua. Ib qho ruaj khov-beam thiab gantry configuration pab txo qis deformation ntawm lub kaw lus nrog lub load loj-cov kabmob muaj peev xwm.
High Rigidity & Superior Precision
Txhua qhov tseem ceeb, xws li cov nqaj hlau gantry, txaj thav duab thiab kab, yog ua los ntawm qib siab - qib cam khwb cia hlau los ntawm cov txheej txheem molding rau ntau cov kauj ruam tom ntej vibration aging kom tshem tawm cov kev ntxhov siab tag nrho. Los ntawm optimization nrog finite-element tsom xam, kaw-box- hom qauv tau txhim kho tag nrho rigidity thiab vibration-damping zog kom txo tau vibrations vim hnyav txiav. BT40 spindle (yeem BT50), preloading C3 qib precision pob ntsia hlau, thiab hnyav-cov dej num rau cov menyuam kab qhia kev tsheb nqaj hlau; Qhov chaw qhov tseeb yog nyob rau hauv ± 0.008 mm / 300 mm ntau, thiab qhov rov ua tau zoo dua ± 0.005 mm.
Txiav txiav & yoog raws kev teeb tsa
Nruab nrog 15/18.5-kilowatt lub zog loj- siab- lub zog spindle- lub cev muaj zog uas tuaj yeem xa cov torque loj; Lub spindle kev khiav hauj lwm ntau yog los ntawm 40 mus rau 8000 rpm (optional 6000rpm); Txhawb nqa ob qho tib si hnyav -txiav siab- cov ntaub ntawv muaj zog thiab siab - txiav ceev ntawm aluminium alloy. Txhim kho tus qauv nrog 24-chaw nres tsheb disk- hom ntawv xov xwm (xaiv tau 30 chaw nres tsheb); Cov cuab yeej hloov pauv tsis pub dhau 2.5-3s; Txhawb ntau cov txheej txheem txuas ntxiv ua haujlwm; Shortens lub sij hawm tsis ua hauj lwm. Nws muaj qhov ntxaiv uas tuaj yeem ua milling, tho txawv, drilling, T- sib koom, xov-txiav, thiab lwm yam.; nruab nrog lub kaum sab xis milling lub taub hau lossis plaub axes indexer lub rooj kom pab tau ntau lub kaum ntse ntse thiab tsib-sided machining.
Kev ua haujlwm ntse & txhim khu kev qha tom qab-Kev muag khoom
Nws yog muab nrog ib tug intuitive CNC ntaus ntawv (optionally Syntec, Fanuc, Siemens los yog GKS), muaj peb axis linkage muaj nuj nqi, DNC online ua muaj peev xwm, ntse ntse nrhiav kom tau muaj nuj nqi kom yooj yim tus neeg teb xov tooj txoj hauj lwm load. Ib tus kheej- muaj cov twj tso kua mis tsis siv neeg cov roj lubrication tau teeb tsa los txuas ntxiv lub neej ntawm cov khoom tseem ceeb thiab tswj kev ua haujlwm ruaj khov rau 24 teev hauv ib hnub. CE cim cov khoom lag luam, ib qho - xyoo lav thiab kev xaiv ob xyoos txuas ntxiv ntawm cov khoom siv hloov pauv.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
GMC1614 |
|
Lub rooj loj (W * L) |
mm |
1200*1700 |
|
X axis taug kev |
mm |
1600 |
|
Y axis taug kev |
mm |
1500 |
|
Z axis taug kev |
mm |
800 |
|
Gantry dav / dhau qhov siab |
mm |
W:1500/H:1030 |
|
Rooj load |
t |
2.5 |
|
Qhov deb ntawm qhov ntswg spindle thiab lub rooj saum npoo |
mm |
150~950 |
|
T qhov (tus naj npawb -dav * suab) |
- |
7-22*170 |
|
Spindle taper |
- |
BT50/190 |
|
Spindle ceev |
r / min |
6000 |
|
Kev nrawm nrawm nrawm |
m/min |
15 |
|
Txiav pub ceev |
m/min |
10 |
|
Main lub cev muaj zog |
kws |
15/18.5 |
|
Tool magazine |
Arm 24 |
|
|
Positioning raug |
mm |
X/Y 0.0075 Z 0.015 |
|
Rov ua dua qhov tseeb |
mm |
0.005 |
|
Zuag qhia tag nrho (L * W * H) |
mm |
5900*4200*4200 |
|
Tshuab hnyav (kwv yees) |
t |
15.5 |
Tshuab Txheem Paub meej
MACHINE CONSTRUCT
Siab zog siab zooHT300nrum hlau
TSEEM CEEB SYSTEM
Txheem: syntec tswj qhov system
TAIWAN PreCISION SPINDLE
1. Taiwan spindle
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.TaiwanOKADA arm 24 tool magazine.
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 Nto moo hom txhuas ntsia hlau,
2. txhuas ntsia hlau bearing siv SKF los yog NACHI bearing,
3. coupling YC txuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERGTsis siv neeg centralized lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1. nrog Schneider kev ruaj ntseg hluav taws xob Cheebtsam
2. Ceev ntsaws raws li tus qauv
Txhua lub tshuab dhau Renishaw laser interferometer kuaj thiab ntsuas ballbar
Daim ntawv thov Scenario
Medium & Loj Pwm Manufacturing:Dav siv los ua cov khoom nruab nrab- mus rau- pwm loj, pwm puag, thiab pwm ntxig, xws li yas txhaj pwm, stamping pwm, thiab tuag- casting pwm. GMC1614 muaj ntau yam kev ua haujlwm thiab yog qhov nruj; Tom qab ntxhib thiab zoo sib tsoo los ntawm ib qho -clamping txoj kev, kev ua hauj lwm pab tau yooj yim thiab yog li ua rau molding kab ua hauj lwm zoo.
Mechanical Structure Parts Processing:Hauv kev ua cov txheej txheem loj loj rau cov tshuab dav dav, suav nrog hydraulic valve lub cev, kev txhawb nqa rooj zaum, Beam Structures thiab lub zog loj. Cov khoom no muaj cov ntim loj thiab cov kev xav tau siab rau rigidity thiab precision, thiab lub tshuab muaj peev xwm 2500kg thiab dav dav ua tau raws li lawv cov kev xav tau.
Aerospace & Rail Tsheb thauj mus los:Tsim nyog rau kev ua cov khoom nruab nrab- cov khoom loj hauv aerospace (piv txwv li, Cov khoom siv dav hlau dav hlau, cov khoom siv cav) thiab kev tsheb ciav hlau (xws li rail Brackets, Train structural components). High Accuracy thiab Stability tuaj yeem ua kom muaj kev nyab xeeb thiab ruaj khov Daim Ntawv Thov ntawm cov khoom tseem ceeb uas ua tau raws li cov qauv kev lag luam.
Automotive Loj Qhov Chaw Ua Haujlwm:Siv los ua cov loj- tsheb loj, piv txwv li, Lub Cev Ncej ntawm Tsheb / Tsheb lossis Lub Cav Loj / Sib Nqus Rings thiab lwm yam. Lub siab - kev ua tau zoo txiav muaj peev xwm thiab ntau- kev ua haujlwm muaj peev xwm ua tau raws li qhov yuav tsum tau ua ntawm cov tsheb loj los xyuas kom muaj qhov sib xws.
Industrial Hlau Khoom & Foundry:Tsim nyog rau kev ua cov loj - nplai muaj hlau daim hlau, steel ncej, thiab nyuaj castings. Nws yog me me hauv ntim thiab muaj zog heev; li no, peb ntseeg tias nws yuav ua tau zoo rau kev ua hauj lwm ntawm ob lub foundries thiab factories nrog ntau yam kev khiav hauj lwm ib puag ncig.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm gantry milling tshuab GMC1614?
A: Loj ntawm lub rooj ua haujlwm: 1200mm x 1700mm; Maximum Load ntawm lub rooj ua haujlwm: Txog 2500kg. X / Y / Z axis mus ncig yog 1600 × 1500 × 800mm, gantry ncua 1500mm, dhau qhov siab 1030mm. Spindle ceev ntau yam: 40-8000 r / min; Positioning raug ± 0.008 mm / 300 mm, Repeatability positioning raug ± 0.005 mm. Lub zog spindle lub cev muaj zog yog 15/22kW, cov cuab yeej magazine muaj peev xwm 24 chaw nres tsheb (yeem 30 chaw nres tsheb).
Q: Cov spindle thiab cov cuab yeej magazine ntawm GMC1614 puas tuaj yeem hloov kho?
A: Yog lawm, siv tus qauv BT40 hom spindle hauv peb lub Hoobkas tuaj yeem hloov kho rau hauv qhov sib npaug BT50 los ntawm kev hloov nws lub vaj tsev lossis qhov tseem ceeb spigot. Cov ntawv xov xwm 24-chaw nres tsheb kuj tseem tuaj yeem nthuav mus rau peb lub chaw nres tsheb rau kev tuav ntau cov txheej txheem tsis tu ncua.
Q: Cov ntaub ntawv twg tuaj yeem ua tau, thiab nws txawv li cas ntawm cov qauv gantry me?
A: Cov hlau ua haujlwm feem ntau suav nrog carbon steels, alloys steels, aluminium alloys, pwm steels thiab cam khwb cia hlau; Nws kuj tseem tsim nyog rau kev ua Engineering Plastics. Nyob rau hauv kev sib piv rau cov me me gantry hom, loj span thiab loj workspace; siab load-cov kabmob muaj peev xwm ua rau nws haum rau kev ua haujlwm nruab nrab- qhov loj lossis qhov loj dua.
Q: Yuav ua li cas tom qab- cov kev pabcuam muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Lub Sijhawm Warranty: 1 xyoo; Txuas ntxiv lub sijhawm lav rau cov khoom tseem ceeb suav nrog cov spindle, Linear txoj kev taw qhia, pob- ntsia hlau mechanism thiab CNC system, thiab lwm yam. Muab 24-teev kev pabcuam, khoom siv kho qhov tsis raug thiab cov khoom hloov, kev cob qhia pub dawb rau cov neeg ua haujlwm; Muab kev pabcuam ua ntej xa daim video pov thawj. Txawv teb chaws commissioned installation yog muaj rau ntiav (them).
Q: Tag nrho qhov loj thiab qhov hnyav ntawm lub tshuab yog dab tsi, thiab nws puas yooj yim rau nruab?
A: Kwv yees li 5900 × 4200 × 4200 mm, qhov tseeb qhov hnyav yog nyob ib ncig ntawm 15.5 tonnes. Muab tag nrho cov ntsiab lus ntawm kev teeb tsa cov kauj ruam thiab muab kev pabcuam kev pabcuam; npaj engineers mus rau qhov chaw rau commissioning thiab installation ua hauj lwm.
