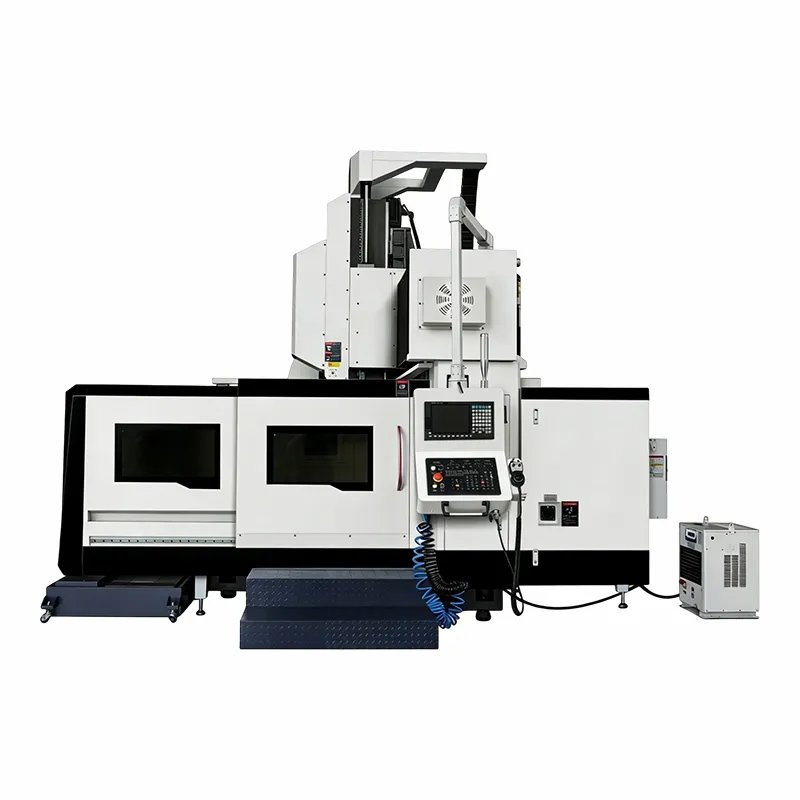

Gantry cnc milling tshuab GMC1612 yog ib hom kev ua haujlwm siab thiab hnyav gantry hom CNC tshuab siv los ua cov txheej txheem nruab nrab thiab qhov loj me. Tsis zoo li ntsug machining chaw thiab cov qauv kab rov tav dav dav, nws siv cov qauv gantry ruaj khov nrog thaj chaw ua haujlwm loj thiab mus ntev ntev, muaj kev nruj nruj thiab ua haujlwm zoo hauv kev txiav. Cov kev siv tseem ceeb ntawm txoj kev no yog cov khoom siv hlau xws li carbon steels, alloy steels, aluminium alloys, pwm steels thiab cam khwb cia hlau; Nws tuaj yeem ua cov khoom tsis yog-cov khoom siv hlau, suav nrog cov khoom siv yas engineering; Muab cov kev daws teeb meem txhim khu kev qha thiab ua tau zoo rau cov loj- qhov loj me hauv Machinery, Automotive, Aerospace thiab Kev Tsim Kho Kev Lag Luam.
Khoom zoo
Loj -Txoj kev muaj peev xwm & ruaj khov Load-Cov kabmob
GMC1612 muaj hom gantry, nws qhov chaw ua haujlwm yog 1000 * 1600mm thiab qhov siab tshaj plaws thauj khoom tuaj yeem ncav cuag 10 tonnes; Lub tshuab no zoo dua li ntsug machining chaw lossis me me - dai qauv. Lub X-axis, Y-axis thiab Z-axis mus txawv tebchaws yog 1600x1200 x700mm, lub gantry loj yog 1230*860mm wide, tso cai rau ua kom khov kho ntawm loj-sized ua hauj lwm- phaj nrog rau cov qauv loj, nyias nyias. Qhov ruaj khov gantry thiab movable worktable Tsim kom muaj kev ruaj ntseg ntawm kev ua haujlwm nyob rau hauv siab -load tej yam kev mob vim yog ib tug hnyav ua hauj lwm - thooj.
High Rigidity & Superior Precision
Lub tshuab lub gantry beam, txaj thiab kem yog tsim los ntawm siab - zoo HT300 cam khwb cia hlau los ntawm kev siv resin xuab zeb casting tshuab tom qab tso cov kev ntxhov siab sab hauv los ntawm kev co kev laus theem nrab. Tom qab optimization siv finite keeb tsom xam los faib cov rog tsim nyog thiab txhim kho kev co absorbing efficiency. BT40 spindle (optionally BT50), Prestressed C3-qib precision pob ntsia hlau, thiab Taiwanese tuam txhab HIWIN/PMI hnyav-duty linear qhia txoj kev; Nws txoj hauj lwm raug yog ± 0.008 hli (X / Y axis) thiab ± 0.01 hli (Z axis); Repeatability displacement raug mus txog ± 0.005 hli.
Txiav txiav & ntau yam kev ua haujlwm
Lub 11/15kW siab- lub zog spindle lub cev muaj zog txaus torque thiab tuaj yeem ncav cuag qhov siab tshaj plaws spindle ceev ntawm 8000 rpm lossis txawm mus txog 12000 rpm optionally. Nws feem ntau yog muab nrog 24- chaw nres tsheb caj npab- hom ntawv xov xwm uas txhawb nqa cov cuab yeej hloov pauv sai thiab ntau- txheej txheem kev ua haujlwm tas mus li kom luv lub sijhawm ua haujlwm tsis yog{11}}. Kev them nyiaj yug rau milling, tho txawv, drilling, txee- tho txawv thiab lwm yam txheej txheem; nws los nrog rau sab laug-rau- txoj cai kaum-milling lub taub hau uas tso cai rau ua 5-sided txiav nyob rau hauv ib txoj hauj lwm kom nce cov zis.
Kev ua haujlwm ntse & txhim khu kev qha
Nruab nrog ib qho yooj yim, yooj yim CNC Solution (xws li los ntawm Fanuc, siemen lossis GSK) tuaj yeem xaiv rau peb qhov kev sib txuas, tiag - lub sijhawm hloov tshiab, thiab tsis siv neeg saib xyuas kev ua tsis tiav. Nws tau nruab nrog lub tshuab lubrication tsis siv neeg, spindle- roj- txias system thiab siab -siab-chip-conveyor los txuas ntxiv lub neej kev pabcuam ntawm cov khoom tseem ceeb thiab ua kom ruaj khov ua haujlwm dhau 24 teev. Nws kuj muaj hluav taws xob txee cua txias kom ruaj khov thiab tiv thaiv cov khoom siv hluav taws xob.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
GMC1612 |
|
Lub rooj loj (W * L) |
mm |
1000*1600 |
|
X axis taug kev |
mm |
1600 |
|
Y axis taug kev |
mm |
1200 |
|
Z axis taug kev |
mm |
700 |
|
Gantry dav / dhau qhov siab |
mm |
W:1230/H:860 |
|
Rooj load |
t |
2 |
|
Qhov deb ntawm qhov ntswg spindle thiab lub rooj saum npoo |
mm |
100-800 |
|
T qhov (tus naj npawb -dav * suab) |
- |
7-22*140 |
|
Spindle taper |
- |
BT40 |
|
Spindle ceev |
r / min |
8000 |
|
Kev nrawm nrawm nrawm |
m/min |
24/24/24 |
|
Txiav pub ceev |
m/min |
10 |
|
Main lub cev muaj zog |
kws |
11/15 |
|
Tool magazine |
Arm 24 |
|
|
Positioning raug |
mm |
X/Y 0.0075 Z 0.015 |
|
Rov ua dua qhov tseeb |
mm |
0.005 |
|
Zuag qhia tag nrho (L * W * H) |
mm |
4300*3200*3600 |
|
Tshuab hnyav (kwv yees) |
t |
10 |
Tshuab Txheem Paub meej
MACHINE CONSTRUCT
Siab zog siab zooHT300nrum hlau
TSEEM CEEB SYSTEM
Txheem: syntec tswj qhov system
TAIWAN PRECISION SPINDLE
1. Taiwan spindle
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.TaiwanOKADA arm 24 tool magazine.
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 nto moo hom txhuas ntsia hlau,
2. txhuas ntsia hlau bearing siv SKF los yog NACHI bearing,
3. coupling YC txuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERGTsis siv neeg centralized lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1. nrog Schneider kev ruaj ntseg hluav taws xob Cheebtsam
2. Ceev ntsaws raws li tus qauv
Txhua lub tshuab dhau Renishaw laser interferometer kuaj thiab ntsuas ballbar
Daim ntawv thov Scenario
Loj Pwm & Tuag Kev Lag Luam:Nws yog feem ntau siv los tsim cov pwm yooj yim, nrog rau cov pwm dawb paug, pwm puag thiab ntxig cov pwm pwm loj dua, tuag casting pwm lossis yas txhaj pwm. GMC1612 muaj lub rooj ua haujlwm loj thiab siab nruj uas ua rau roughing thiab semi- ua kom tiav qhov loj ntawm - pwm tivthaiv ib zaug; Los ntawm kev txo qhov thib ob- lub sijhawm ua haujlwm, qhov no txhim kho pwm-Kev ua tau zoo.
Heavy Machinery & Engineering Machinery:Haum rau kev tsim cov qauv loj - nplai hauv siab- cov cuab yeej siv tshuab ua haujlwm, xws li hydraulic li qub, kev txhawb nqa thiab cov hauv paus, chassis Cheebtsam, nqaj qauv, thiab lwm yam. Cov khoom no muaj qhov ntim loj thiab hnyav, thiab lub tshuab muaj peev xwm 2.5-tuj load thiab kev mus ncig loj tuaj yeem ua tau raws li lawv cov kev xav tau.
Automotive & Aerospace Cheebtsam:Thov ua cov txheej txheem loj - cov tsheb loj (piv txwv li, lub cev ntas, npog lub cav loj) thiab siab - kev ua haujlwm hauv aerospace . Qhov raug siab thiab ruaj khov ua kom ntseeg tau tias kev ua haujlwm zoo ntawm cov khoom tseem ceeb no ua tau raws li cov qauv nruj ntawm kev lag luam tsheb thiab aerospace.
Architectural & Industrial Hlau Khoom:Haum rau kev ua haujlwm loj - nplai architectural aluminium profiles, steel ncej thiab lwm yam. Qhov loj - cheeb tsam kev muaj peev xwm thiab siab - qib precision tuaj yeem ua tau raws li qhov yuav tsum tau muaj rau kev kho kom zoo nkauj architecture thiab cov khoom siv tsim khoom.
Precision Machinery & Foundry Manufacturing:Siv los ua cov txheej txheem loj loj - cov khoom siv tshuab precision thiab cov khoom siv nyuaj, suav nrog cov iav loj, cov ncej thiab lwm yam ntawm qhov chaw. Nws yog qhov tsim nyog rau kev tuav cov duab nyuaj thiab loj - ua haujlwm loj - cov khoom hauv cov chaw tsim khoom lossis cov tshuab precision- tuam txhab tsim khoom;
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm gantry cnc milling tshuab GMC1612?
A: workbench loj: L × W =1600mm × 1,050 mm; siab tshaj plaws nyob load peev: 2T . X / Y / Z axis mus ncig yog 1650 × 1200 × 700mm, gantry dav 1230mm, dhau qhov siab 860mm. Spindle Speed Range: 40-8000 Rpm; Positioning Accuracy ±{12}} hli (X/Y); ± 0. 015mm(Z); Rov ua dua qhov tseeb qhov tseeb ±0. 005 hli. Spindle Lub cev muaj zog: 11/15 kW; Tool Magazine Peev Xwm: 24 Chaw nres tsheb.
Q: Dab tsi yog spindle hom, thiab nws puas tuaj yeem hloov kho?
A: Tus qauv spindle yog BT40; yog tias xav tau los ntawm cov txheej txheem yuav tsum tau, nws tuaj yeem hloov nrog BT50. Tsis tas li ntawd, spindle ceev tuaj yeem nce mus txog 10,000 thiab 12,000 r / min rau siab -Kev txiav ceev .
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tus txheej txheem GMC1612, thiab nws puas haum rau kev ua haujlwm loj -thooj?
A: Feem ntau cov txheej txheem hlau, xws li carbon steel, alloy steel, aluminium alloys, pwm steels, cam khwb cia hlau, thiab lwm yam., thiab tseem tuav engineering plastics. Yog lawm, nws 1600 × 1050mm worktable thiab 2.5-tuj load peev xwm tshwj xeeb yog tsim los rau loj workpieces, haum rau loj - hom thiab hnyav-ib feem ua.
Q: Yuav ua li cas tom qab- kev muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Lub sijhawm lav yuav them rau ib xyoos, thiab peb cov tuam txhab kev tswj hwm zoo yog ISO 9001 / CE / ROHS cov khoom. Nyob ib ncig ntawm lub moos technical support; Ntawm - qhov chaw pabcuam; Muab cov khoom hloov tiag tiag; Muab cov chav kawm pub dawb rau tus neeg teb xov tooj; Tshaj tawm - muag tshuaj xyuas cov kev pabcuam video. Lub sij hawm them nqi yog: 30% Ua ntej thiab 70% Ua ntej-Shipment;
Q: Tag nrho qhov loj thiab qhov hnyav ntawm lub tshuab yog dab tsi, thiab nws puas yooj yim rau nruab?
A: Kwv yees li ntawm 4300 × 3200 × 3600 mm nyob rau hauv qhov loj, thiab kwv yees li ntawm 10.5 tonnes. Muab phau ntawv qhia kev teeb tsa thiab tuaj yeem npaj cov neeg ua haujlwm engineering tuaj rau ntawm qhov chaw rau kev ua haujlwm, kev sib txuas ua haujlwm (tus nqi-rau- kev pabcuam).
