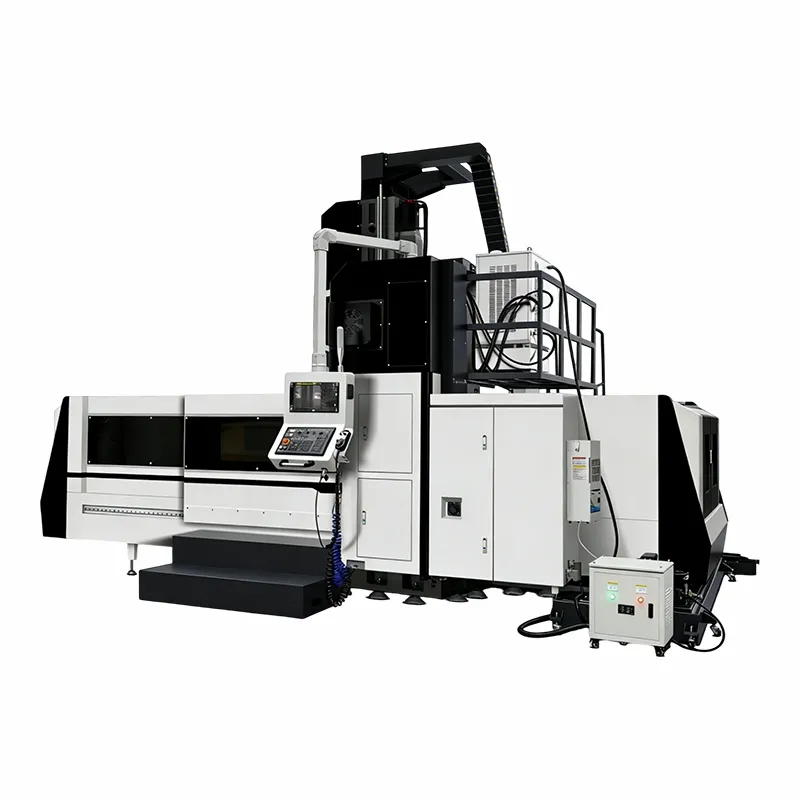

Cnc gantry hom machining chaw GMC2014 muaj kev ruaj ntseg ruaj khov nyob rau hauv kev kub siab, precision thiab complex duab ntawm kev ua hauj lwm -piece ua. cov ntsiab lus ntawm ob -kem ruaj khov- nqaj gantry qauv los txhim kho kev nruj, kev ua haujlwm rau hnyav- lub luag haujlwm txiav, hloov tau yooj yim. Feem ntau yog siv los ua ntau yam hlau, xws li carbon steel, alloy steel, aluminium alloys, pwm steels thiab cam khwb cia hlau; Muab cov cuab yeej yooj yim rau cov kev lag luam no, uas suav nrog kev lag luam tshuab hnyav, pwm tsim, kev lag luam aviation, kev tsheb ciav hlau thiab lwm yam.
Khoom zoo
Muab ob npaug rau-Kem Gantry & Super Heavy-Load Capacity
GMC2014 txais yuav ob-beam ntau- qauv qauv; Nws tsim dav yog 1500mm thiab chaw ua hauj lwm muab los ntawm worktable ncav cuag specifications ntawm 1200 × 2100 hli; Lifting Load ntau tshaj peb-thiab-a- ib nrab tonnes. Nws muaj X-Y-Z-axis txav ntau ntawm 2000 × 1500 × 800mm, hla qhov siab yog 1500mm; Muaj peev xwm ua haujlwm ruaj khov ua haujlwm loj-cov khoom xws li Pwm Loj Loj, Hnyav Hnyav Beam Thiab Cov Hlau Hlau Loj. Symmetric ob -kab qauv muaj peev xwm tiv thaiv deformations tshwm sim los ntawm sab nraud uniformly faib quab yuam ntau ntseeg tau nyob rau hauv siab dua - load tej yam kev mob.
High Rigidity & Exceptional Precision
Txhua qhov tseem ceeb, xws li cov nqaj hlau gantry, ob chav kab thiab txaj, yog tsim los ntawm qib siab -qib HT300 cam khwb cia hlau tom qab siv cov cuab yeej casting rau kev vibration aging kho ob peb theem ntawm kev tso siab sab hauv. Kaw-box- nqaj qauv nrog tuab- phab ntsa los txhim kho nws tag nrho rigidity thiab vibration-damping peev xwm; yog li ntawd, txo qis kev vibrations vim yog txiav quab yuam ntau dhau. Ib tug BT50 ntxaiv, pre-loaded C3 qib precision pob ntsia hlau, thiab ib tug hnyav{11}}lub luag hauj lwm rau cov menyuam txoj kev qhia tau raug ntsia kom ua tiav X-Y qhov chaw qhov tseeb ntawm ± 0.0075mm thiab Z-axis txoj hauj lwm yuam kev hauv qab ± 0.015mm Nws qhov kev rov ua tau zoo dua yog ± 0.005mm.
Hnyav Hnyav Hnyav -Txiav & Hloov Kho Kom Zoo
Tsim los ntawm 15/18.5kW siab zog- spindle lub cev muaj zog, nws tuaj yeem xa cov torque loj heev; nws cov spindle ceev ntau yog 50-6000r/min, haum rau hnyav-txiav siab- cov ntaub ntawv muaj zog nrog rau kev txiav ceev ceev ntawm aluminium- alloy qhov chaw . Nruab nrog tus qauv 24- Chaw nres tsheb Disc hom cuab yeej magazine (xaiv tau: Ntxiv peb caug chaw nres tsheb) - Cov cuab yeej hloov ceev nrawm ua tiav ntau- txheej txheem Kev Ua Haujlwm Tsis tu ncua txo qis - Lub Sijhawm ua haujlwm. Lub spindle muaj cov haujlwm ntawm milling, tho txawv, drilling, kais{15}} tsav tsheb thiab txee- tho txawv; Ib txoj haujlwm los siv raws li txoj cai-lub kaum sab xis Milling lub taub hau lossis lub cuab yeej tsis siv neeg- teeb tsa qhov system tuaj yeem paub txog ntau-groove-thiab-angled-machining hauv ib qho kev sib tw.
Kev ua haujlwm ntse & txhim khu kev qha
Nruab nrog tus neeg siv -tus phooj ywg CNC system (xws li, Fanuc Oi-MF, Siemens 828D, lossis Mitsubishi M80A), thiab tuaj yeem txuas rau peb axes; DNC online txiav, automated tswj systems uas muab cov ntaub ntawv hais txog machining yuam kev nyob rau hauv tiag - lub sij hawm, thiab lwm yam. Nws muaj ib tug self-lubrication tsis siv neeg concentrated system rau spindles; Spindle Oil Cooling System ua kom muaj kev xa khoom tas mus li tom qab siv sijhawm ntev -; Ob-kauv Chip Conveyors tau teeb tsa los ua kom yooj yim tshem tawm cov chips. CE daim ntawv pov thawj, ROHS raws thiab ISO 9001 tau ntawv pov thawj kom ua tau raws li tus qauv thoob ntiaj teb kev ua tau zoo.
Cov khoom tseem ceeb technical parameter
|
SPECIFICATIONS |
Chav tsev |
GMC2014 |
|
Lub rooj loj (W * L) |
mm |
1200*2100 |
|
X axis taug kev |
mm |
2000 |
|
Y axis taug kev |
mm |
1500 |
|
Z axis taug kev |
mm |
800 |
|
Gantry dav / dhau qhov siab |
mm |
W:1500/H:1030 |
|
Rooj load |
t |
3.5 |
|
Qhov deb ntawm qhov ntswg spindle thiab lub rooj saum npoo |
mm |
150~950 |
|
T qhov (tus naj npawb -dav * suab) |
- |
7-22*170 |
|
Spindle taper |
- |
BT50/190 |
|
Spindle ceev |
r / min |
6000 |
|
Kev nrawm nrawm nrawm |
m/min |
15 |
|
Txiav pub ceev |
m/min |
10 |
|
Main lub cev muaj zog |
kws |
15/18.5 |
|
Cov cuab yeej magazine |
Arm 24 |
|
|
Positioning raug |
mm |
X/Y 0.0075 Z 0.015 |
|
Rov ua dua qhov tseeb |
mm |
0.005 |
|
Zuag qhia tag nrho (L * W * H) |
mm |
6700*4200*4200 |
|
Tshuab hnyav (kwv yees) |
t |
17.5 |
Tshuab Txheem Paub meej
MACHINE CONSTRUCT
Siab zog siab zooHT300nrum hlau
TSEEM CEEB SYSTEM
Txheem: syntec tswj qhov system
TAIWAN PreCISION SPINDLE
1. Taiwan spindle
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.TaiwanOKADA arm 24 tool magazine.
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 nto moo hom txhuas ntsia hlau,
2. txhuas ntsia hlau bearing siv SKF los yog NACHI bearing,
3. coupling YC txuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERGTsis siv neeg centralized lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1. nrog Schneider kev ruaj ntseg hluav taws xob Cheebtsam
2. Ceev ntsaws raws li tus qauv
Txhua lub tshuab dhau Renishaw laser interferometer kuaj thiab ntsuas ballbar
Daim ntawv thov Scenario
Loj Pwm & Tuag Manufacturing:Feem ntau siv rau kev tsim cov pwm dav dav, pwm puag thiab pwm ntxig qhov chaw; suav nrog loj stamping pwm, tuag casting pwm thiab yas txhaj pwm. GMC2014 kev ua haujlwm loj-daim lub rooj, qhov hnyav, lub peev xwm thauj khoom thiab qhov nruj raws li qhov yuav tsum tau ua kom ua tiav ob qho tib si roughing thiab ua tiav ib txhij nyob rau hauv ib qho kev ua haujlwm clamping ntawm qhov pwm ntev heev rau kev txhim kho kev tsim khoom.
Heavy Machinery & Engineering Machinery: Hauv kev ua cov txheej txheem loj - nplai rau cov khoom siv hnyav xws li hydraulic li qub thiab kev txhawb nqa brackets, chassis beams, thiab engineering machines 'arms. Cov khoom no muaj qhov ntim loj thiab hnyav, thiab lub tshuab muaj peev xwm 3.5-tuj thauj khoom thiab txuas ntxiv mus ncig ua kom tau raws li lawv cov kev xav tau.
Aerospace & Rail Tsheb thauj mus los:Haum rau cov txheej txheem ntawm nruab nrab- qhov loj qhov chaw hauv Aerospace (xws li Aircraft qauv Accessories, Cav Cheebtsam), Rail Transportation (xws li, railway brackets, Train Structural Parts). Nws muaj qhov raug siab thiab lub xeev ruaj khov, ua tau raws li Kev Nyab Xeeb Kev Nyab Xeeb cov cai ntawm cov khoom tseem ceeb no hauv kev lag luam sib xws.
Automotive Loj Qhov Chaw Ua Haujlwm:Kev ua haujlwm ntawm cov tsheb loj xws li lub cev ntas, cov cav loj loj, thiab kis tau tus mob. Muaj peev xwm ua tau zoo txaus-txiav, ntau- kev ua haujlwm muaj peev xwm los xyuas kom meej qhov kev tsim khoom loj ntawm kev lag luam tsheb, tswj qhov sib xws.
Industrial Hlau & Foundry khoom: Haum rau kev ua cov hlau loj loj, steel ncej thiab lwm yam nyuaj castings. Nws loj - hom kev muaj peev xwm ua tau thiab hnyav -load bearing ua rau nws tsim nyog rau kev tsim cov khoom tsim thiab cov khoom siv hauv kev tsim khoom, tuav ntau yam loj - cov kev xav tau ua haujlwm.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm cnc gantry hom machining chaw GMC2014?
A: Lub worktable Loj yog 1200 x 2100mm, thiab nws cov load - nqa ntau tshaj 3.5t. X / Y / Z axis mus ncig yog 2000 × 1500 × 800mm, gantry dav 1500mm, dhau qhov siab 1030mm. Lub spindle ceev yog nyob rau hauv thaj tsam ntawm 50-6000r / min; Qhov tseeb qhov chaw: X / Y ± 0.0075 hli, Z ± 0.015 hli; Rov ua dua qhov kev ua yuam kev tsawg dua lossis sib npaug rau ± 0.005mm. Spindle motor fais fab mov voltage: 15-18.5 KW; Cov cuab yeej magazine kom muaj nuj nqis, xaiv tau nce mus rau 32 chaw nres tsheb.
Q: GMC2014 puas tuaj yeem hloov kho nrog cov haujlwm ntxiv?
A: Yog, nws tuaj yeem txhawb nqa ntau yam hloov tshiab; ntawm lawv yog 32- chaw nres tsheb cov cuab yeej magazine, txoj cai- lub kaum ntse ntse lub taub hau, cov cuab yeej tsis siv neeg- teeb tsa muaj nuj nqi thiab ntxaiv-centre-watering-rov qab qauv. CNC tshuab kuj tseem tuaj yeem hloov los ntawm Siemens 828D thiab Mitsubishi M80A hom raws li kev thov.
Q: Cov ntaub ntawv twg tuaj yeem ua tau, thiab nws txawv li cas ntawm ib qho -kab gantry qauv?
A: Feem ntau cov txheej txheem hlau, xws li carbon steel, hlau alloy, aluminium alloys, pwm steels thiab cam khwb cia hlau. Hais txog kev ntseeg siab thiab kev ruaj ntseg thaum siv, piv nrog rau ib qho -Kem gantry hom, Qhov Kev Tsim Kho no tau txais ob qho - kab ke 'Structure uas yog ob qho tib si muaj zog hauv Kev Tsim Kho Thiab Ntau Loads -Resistant Hauv Hnyav Loads.
Q: Yuav ua li cas tom qab- cov kev pabcuam muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Lub sijhawm lav yooj yim yog ib xyoos; Rau cov spindle, linear guideways, pob screws thiab CNC tshuab tau ntxiv ib tug thib ob -xyoo Guarantee. Muab 24 teev nyob rau ib hnub hauv online kev txhawb nqa kev pab cuam, ntawm - kev pabcuam kho qhov chaw, muab cov khoom siv qub qub, cov kev qhia pub dawb rau tus neeg teb xov tooj, thiab ua ntej - kev tshuaj xyuas los ntawm kev yees duab. Kev xa tawm thiab kev teeb tsa txawv teb chaws muaj (kev pabcuam them nqi), thiab lub sijhawm them nyiaj suav nrog L / C thiab T / T.
Q: Tag nrho qhov loj thiab qhov hnyav ntawm lub tshuab yog dab tsi, thiab nws puas yooj yim rau nruab?
A: Kwv yees li ntawm 6700 x 4200x4200 mm nyob rau hauv qhov loj, thiab nws kwv yees qhov hnyav yog nyob ib ncig ntawm 17.5 tonnes. Muab cov lus qhia ntxaws txog kev teeb tsa thiab kev txhawb nqa kev tshaj lij, Peb kuj tuaj yeem npaj rau cov kws ua haujlwm ua haujlwm ntawm -qhov chaw sib txuas thiab kev teeb tsa raws li cov neeg siv khoom xav tau, kom ntseeg tau tias ua tiav cov haujlwm ua tiav..
