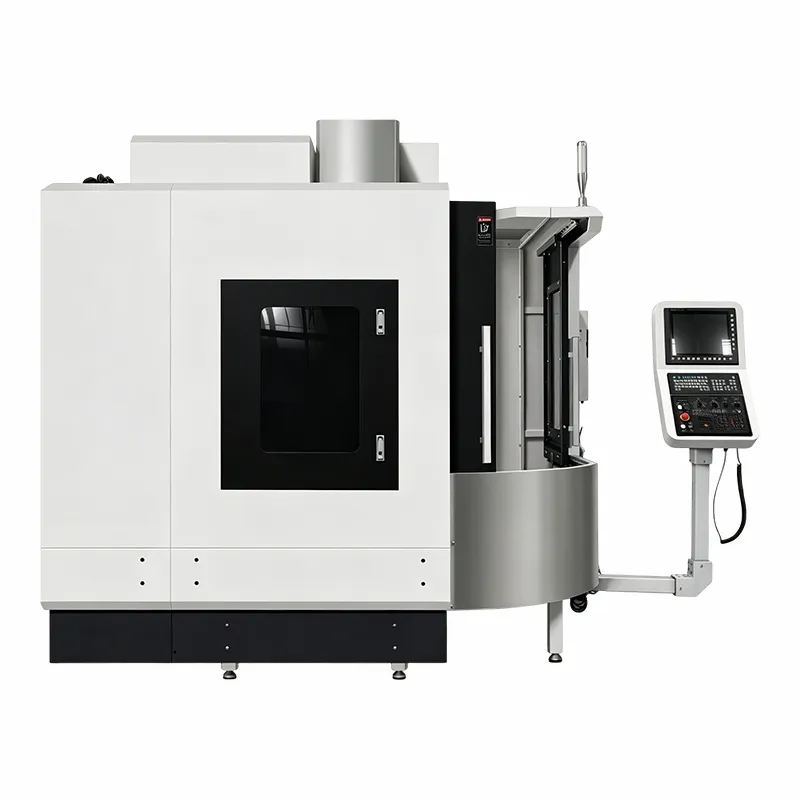

Turbine 5 Axis CNC Gantry Machine Center AMC600 yog ib qho zoo tib yam peb ntxiv rau ob - qhov chaw tshwj xeeb- lub hom phiaj cuaj-axis CNC tshuab uas tuaj yeem tsim cov khoom loj - loj turbines thiab hnyav hnyav - cov qauv ua haujlwm hauv ntau yam lag luam. tus nqi-paub tau zoo txog peb-ntxiv rau-ob axis positioning, thiab ua tau raws li cov kev xav tau tshwj xeeb hauv cua{11}}turbine machining. Ua raws li peb lub tswv yim ntxiv rau ob lub tswv yim - ua ke ntawm ob lub axis teb (A/C), uas tuaj yeem ua raws li kev ua haujlwm turbine -cov khoom zoo nrog qhov tseeb; Peb txoj kab axis (X / Y / Z) rau kev txiav ruaj khov - daws teeb meem los ntawm tag nrho cov teb ntawm Vertical tshuab chaw, nyuaj nyob rau hauv ntau -lub kaum sab xis machining ntawm turbine qhov chaw thiab tsis tshua muaj kev ua haujlwm ntawm cov pa peb -axis khoom. Muaj feem xyuam rau kev kho mob ntawm siab -kub- cov ntaub ntawv resistant, titanium alloys thiab pwm steels; Muab qhov tseeb, ceev ceev thiab kev cia siab rau kev daws teeb meem rau turbine Manufacturing, Aerospace, Zog Khoom thiab Hnyav Machinery kev lag luam.
Khoom zoo
Turbine-Specific 3+2 Positioning & High Precision
AMC600 raws li lub siab turbine tsib-axis ntsug tshuab nruab nrog ob lub AC / DC dual- cov lus teb (A-axis: ± 120 degree, C-axis: 360℃nruam indexing), nws repeatability precision nyob rau hauv lub A / C axis yog ± 0.003mm thiab axis Z / 0.003mm ± 0.004 hli Paub txog ib-lub sijhawm tuav kom ua tiav ntau lub kaum sab xis rau kev ua cov khoom siv turbine xws li turbines blades, turbines Disks thiab nozzles; tshem tawm cov kev ua yuam kev uas tshwm sim ntau zaus, ua tau raws li siab - qhov yuav tsum tau ua siab ntev (± 0.02-0.05 mm) rau turbine airfoil profile . Nruab nrog cov thev naus laus zis thev naus laus zis- yuam kev- thev naus laus zis thev naus laus zis txhawm rau tshawb pom thiab tshem tawm cov kev cuam tshuam ntawm ib puag ncig ntawm cov khoom siv txheej txheem, yog li tswj xyuas qhov tseeb tsis tu ncua hauv kev tsim cov turbines complex-twisted turbines.
Siab -Kev Ua Haujlwm Turbine & Ntau Yam Ua Tau Zoo
iav-tsav spindle (yeem 37.5 kW), nws qhov siab tshaj plaws ceev tuaj yeem ncav cuag 12,000 r / min, thiab nws tau mus txog qhov siab tshaj plaws torque ntawm 180 Nm; kuj nruab nrog ib qho kev xaiv 20 kw. Ib yam 40-chaw chaw nres tsheb- hom ntawv xov xwm tau ua tus qauv uas txhawb nqa cov cuab yeej hloov hauv peb vib nas this; Ntau- txheej txheem txuas mus ntxiv rau turbines xws li milling, Drilling thiab tho txawv thiab Tapping tuaj yeem ua tiav. Cov kev xaiv xaiv tau yog qhov tseeb- ntawm- tshuab- ntsuas cov cuab yeej thiab lub tshuab ntsuas laser kom paub meej qhov tseeb ntawm cov turbines cov hniav thiab lawv cov curvilinear nto, nrog rau cov cua txias.
Hnyav -Lub luag hauj lwm ntsug Structure & Strong Stability
AMC600 uas muaj kev ntseeg siab heev thiab ua los ntawm qib siab -qib HT300 grey cam khwb cia hlau tom qab casting thiab dual- kev kho kev ntxhov siab. Worktable Loj: 600mm, Qhov siab tshaj plaws Load Capacity: 1500 kg, Haum rau kev ua cov khoom loj turbine. A kaw-box Beam Structure optimize siv finite element tsom xam ua rau lub zuag qhia tag nrho rigidity thiab anti- vibration kev ua tau zoo kom txo qis kev vibrations nyob rau hauv hnyav- txiav kev ua hauj lwm siab -lub zog turbine cov ntaub ntawv thiab tiv thaiv hniav deformation vim nyias - phab ntsa Cheebtsam.
Tus nqi -Nyob zoo & Turbine-Oriented Design
AMC600 Piv nrog ua tiav tsib -axis gantry tshuab rau kev ua turbine, muaj 40% txo qis hauv kev nqis peev thiab cov nqi lag luam, tsim rau me me - mus rau nruab nrab - loj turbine ntau lawm cov lag luam. Ib qho tshwj xeeb -circuit CNC system (optional Siemens 840D sl/ Fanuc 31i-B) uas txhawb nqa cov kev pab cuam nkag los ntawm inbuilt turbine-kev ua tsis tau thiab ua tiav peb txoj haujlwm sai- txoj hauj lwm-ob- theem pib; Qhov system no kuj yooj yim rau kev teeb tsa. Dustproof thiab tiv thaiv-cov qauv tsim rau cov tshuab tuaj yeem ua haujlwm hauv cov plua plav, ntub dej hauv cov chaw tsim khoom turbine kom txuas ntxiv cov kev pabcuam.
Cov khoom tseem ceeb technical parameter
|
SPECIFICATIONS |
Chav tsev |
AMC600 |
|
X/Y/Z-axis taug kev |
mm |
700/600/600 |
|
Max.Nyob deb ntawm Spindle End Face mus rau C-Axis Disc Surface |
mm |
30-630 |
|
Max.Nyob deb ntawm Spindle Center mus rau C-Axis Disc nto ntawm 90℃A-Axis |
mm |
300 (xaiv: 400) |
|
Qhov deb ntawm Spindle Center mus rau Kab Qhia Nto |
mm |
650 |
|
Spindle Specification |
mm |
150 |
|
Spindle Taper |
-- |
BT40 |
|
Max.Spindle Ceev |
RPM |
12000 |
|
Spindle Lub cev muaj zog |
KW |
11/15 |
|
X/Y/Z Rapid Traverse |
m/min |
36/36/36 |
|
Txiav Feed Rate |
hli/min |
1-12000 |
|
Rotary Table Drive Hom |
-- |
Direct tsav |
|
Rotary Table Diameter |
mm |
400 |
|
Rotary worktable txoj kab uas hla |
mm |
600 |
|
Max loading peev xwm ntawm Rotary worktable |
kg |
260 |
|
Tool Magazine |
T |
24 |
|
Tool Hloov Sijhawm |
s |
3 |
|
Max.Tool Diameter (Tag Nrho / Nyob ib sab) |
mm |
70/120 |
|
Max.tool length |
mm |
300 |
|
Max.tool luj |
kg |
8 |
|
Tshuab hnyav |
T |
6.5 |
|
Tshuab tag nrho loj (L * W * H) |
mm |
2700*2500*2850 |
Tshuab Txheem Paub meej
Rotary worktable
Standard nrog rotary worktable.
TSEEM CEEB SYSTEM
Txheem: GSK980 / KND1000 tswj
TAIWAN PreCISION SPINDLE
1. Taiwan spindle BT40 8000rpm
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.Taiwan OKADA caj npab 24 cuab yeej magazine .
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 Nto moo hom taub hau ntsia hlau,
2. txhuas ntsia hlau bearing sivSKF lub NACHIbearing,3. kev sib txuasYCtxuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERG Tsis siv neeg nruab nrab lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1.s ibSchneiderkev ruaj ntseg hluav taws xob Cheebtsam
2. Qua plugraws li tus qauv
Daim ntawv thov Scenario
Turbine Cheebtsam Manufacturing:Dav siv los ua cov txheej txheem tseem ceeb ntawm turbines, suav nrog roj-turbine blades, steam-turbine blades, turbine disks thiab nozzles . Peb -ob txoj haujlwm ntawm AMc600 tuaj yeem siv los cuam tshuam nrog twisted airfoils, nyias- cov qauv phab ntsa thiab lub qhov cua txias hauv turbine hniav kom ua tiav Ra Less dua lossis sib npaug li 0.8 μm qhov chaw roughness yuav tsum tau thiab kuj txaus siab rau qhov siab -kub -turbine turbine {9} kev thov.
Aerospace Turbine Yam Ua Haujlwm:Siv rau cov txheej txheem Aerospace Cav Turbine Cheebtsam, xws li Aircraft Engine Turbine Blades thiab Combustion Chambers. Tsis muaj kev ntseeg tias nws yog qhov tseeb txaus, thiab nws muaj zog tiv thaiv - muaj peev xwm turbulence nyob rau hauv parameter qhov tseem ceeb rau loj - dav hlau dav hlau cov khoom ua los ntawm cov ntaub ntawv; 3+2 taw tes txoj hauj lwm Txoj kev yog siv los txhim kho ib feem - kev ceev efficiency.
Kev tsim khoom siv hluav taws xob:Muaj feem xyuam rau kev ua cov khoom siv turbine tsim nyog rau cua- zog, nuclear-Hwj chim thiab hydraulic- cov khoom siv, xws li Cua- turbine housetops thiab Dej-tswj turbines Blades. AMC600 muaj qhov thauj khoom loj-cov kabmob muaj peev xwm thiab kev ruaj ntseg zoo, yog qhov tsim nyog rau kev cuam tshuam nrog loj- lub zog turbine qhov chaw, thiab tuaj yeem ua haujlwm ruaj khov hauv cov xwm txheej hnyav.
Heavy Machinery Turbine Ua:Kev ua cov turbine Cheebtsam rau cov cuab yeej siv hnyav, suav nrog Engineering Machinery Turbine Shafts thiab Hydraulic Turbine Parts thiab lwm yam. Nws muaj lub zog hnyav - txiav muaj peev xwm thiab raug los xyuas kom meej tias hnyav - lub luag haujlwm turbines tuaj yeem tsim tau zoo nrog cov khoom zoo.
Kev Cai Turbine Prototyping:Zoo tagnrho rau me me -batch kev cai ua ntawm turbine prototypes thiab hloov turbine Cheebtsam. 3+2 txoj haujlwm hom muaj qhov sib npaug zoo ntawm kev ua haujlwm yooj yim thiab cov nqi, turbine- cov qauv tsim tshwj xeeb txo qhov nyuaj ntawm tus qauv tsim, yog li txo lub sijhawm R&D rau cov turbines tshiab.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm urbine 5 Axis CNC Gantry Tshuab Center AMC600?
A: Chaw Ua Haujlwm Loj: 600mm; Load peev: 260 kg. X / Y / Z axis mus ncig yog 600 × 1500 × 800mm, A-axis rotation range ± 120 degree, C-axis 360℃nruam indexing. Lub spindle ceev yog 40-12000r / min; Qhov chaw qhov tseeb: ± O.004 mm (X / Y / Z); Repositioning Precision: ± O.003 hli (A / C); Residual yuam kev:<±o.o02 MM. The spindle motor power supply is 11kw( optional 15kw); Tool Magazine Capacity 24 Stations (optional 30 stations).
Q: Dab tsi yog qhov zoo ntawm AMC600 piv nrog me me 3+2 tsib-axis tshuab (piv txwv li, AMC500) rau kev ua turbine?
A: nws muaj lub tshuab turbine- tshwj xeeb Tsim thiab cov qauv qauv, zoo Anti- kev ua haujlwm vibration thiab siab Precision, ua tau raws li qhov yuav tsum tau ua rau cov khoom siv turbine.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab nws tuaj yeem ua haujlwm siab -kub resistant High temperature alloy rau turbines?
A: Siab -cov khoom kub tsis kam feem ntau npog titanium alloy thiab pwm steel cov ntaub ntawv; Feem ntau siv rau kev tsim khoom ntawm Turbine Cheebtsam. Yog lawm, nws 15kw lub cev muaj zog thiab tiv thaiv - kev co tau tshwj xeeb rau kev ua haujlwm ntawm Kev kub siab tiv thaiv lub cev kom txo tau cov cuab yeej hnav thiab ua kom cov khoom raug.
Q: Yuav ua li cas tom qab- cov kev pabcuam muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Raws li ib txwm muaj, lub sijhawm lav yuav kav 1.5 xyoo; . Muab ib puag ncig-the-clock online technical services, site maintenance, real part supplies, free operator training (nrog rau kev tsom mus rau programming for turbine model 3+2), and pre-delivery inspection videos. Xya Hnub Tom Qab: Cov Khoom Yuav Npaj Rau -Be- Dispensed.
Q: Dab tsi yog lub zog thiab cua siab xav tau, thiab nws puas tsim nyog rau kev tsim cov turbine?
A: 380V / 50Hz mov voltage; Qhov ntau ntawm 6-8 Kgf / c hauv huab cua siab. Plua plav- pov thawj, corrosion-resistant, ruaj nyob rau hauv cov xwm txheej no, Nws tuaj yeem siv los tsim cov turbines lossis cov khoom zoo sib xws. Gantry Structure yog ib qho yooj yim los lis hnyav turbine Cheebtsam thiab tswj kev ruaj ntseg kom dais cov txheej txheem ntawm ntau batch ntawm turbine qhov chaw rau ib tug ncua sij hawm.
