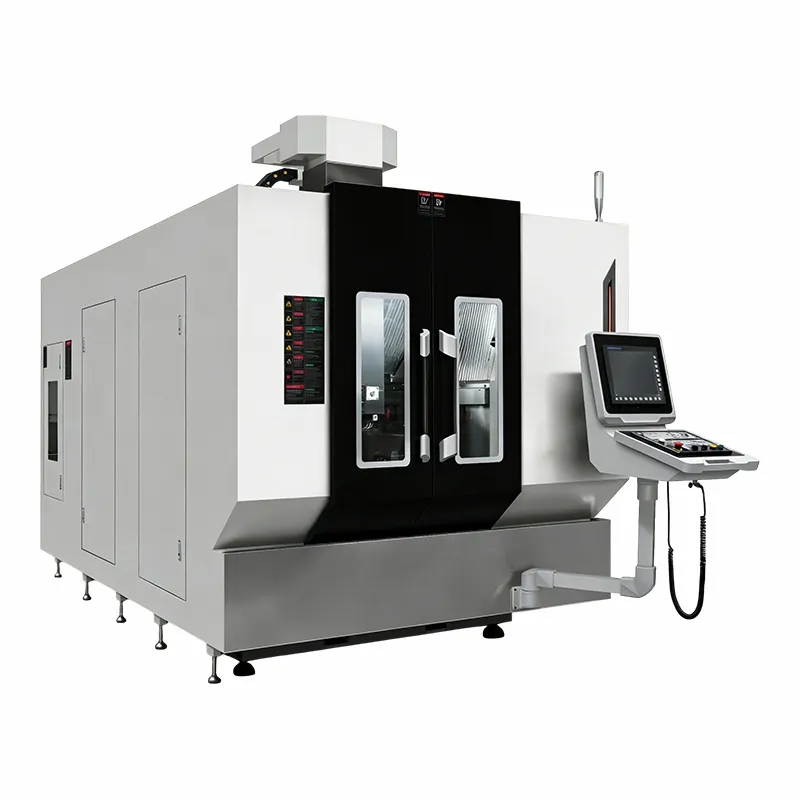

Lub siab precision cnc milling tshuab machining AMU800 yog ib hom tshiab ntawm tsib -axis ntsug CNC tshuab rau kev tsim ultrahigh precision, nyuaj thiab ua haujlwm siab ntev- pieces. Txawm hais tias qee qhov lwm hom me me tsib-axis tshuab lossis qhov loj ntawm cov kav dej-hom tsib-axis tshuab cuab yeej kuj loj dua; Ntxiv rau nws tus kheej cov yam ntxwv xws li tus nqi qis rau ib chav tsev khoom uas ua rau nws tsim nyog rau ntau lawm thiab cov neeg siv. Cov khoom siv no tsim nyog rau cov khoom siv hlau nrog lub zog siab, nrog rau cov titanium alloys, stainless hlau thiab pwm hlau; Nws kuj tseem tuaj yeem ua cov khoom tsis yog-hlau nrog High Precision xws li Zirconia Thiab Carbon Fiber Rau Ntau Precisely Manufactured Aerospace, Precision Medical Equipment, High-kawg Pwm Ntau Lawm Thiab Cov Khoom Siv Ua Haujlwm Zoo thiab Cov Khoom Siv.
Khoom zoo
Ultra-High Precision & Thermal Error Compensation
AMU800 yog ib hom kev ua haujlwm siab -precision 5 axis tshuab uas tau txais kev tswj lub voj kaw tag nrho siv tus pas ntsuas grating kom paub meej cov haujlwm hauv qab no: x / y / z yog ± 0.0075 hli; A / C yog ± 0.004mm; Qhov rov ua haujlwm qhov tseeb yog ± 0.005mm. Nws muaj cov khoom siv hluav taws xob zoo tshaj plaws los tshem tawm cov txiaj ntsig ntawm qhov kub thiab txias hloov ntawm geometry thiab ua kom ntev -lub sij hawm ruaj khov hauv kev ua haujlwm raug raws li kev ua haujlwm tas mus li 24 teev. Lub C-axis-rotor tig tsis tu ncua rau 360℃kom tsis txhob muaj qhov rov qab- teeb meem lash tshwm sim los ntawm cov qauv tsim qauv iav; Yog li ntawd, nws tau txhim kho nws cov angular precision.
High-Rigidity Structure & Superior Anti-Vibration Performance
AMU800 lub txaj, kem thiab kab teeb yog cov ntxhia castings nrog cov coefficient siab dua damping kom nqus cov kev vibrations uas tsim los ntawm siab -ceev thiab hnyav- lub luag haujlwm machining, yog li txo tus nqi Ra ntawm nws cov khoom siv. A φ800mm siab-cov lus ua haujlwm ua haujlwm tau zoo tuaj yeem nqa txog li 1200 kg thiab txheej txheem nruab nrab- qhov loj me, siab - cov khoom muaj tseeb; Qhov kaw -box beam Structure nrog rau sab hauv reinforcing tav txiav txim siab los ntawm finite-element tsom xam yog nruj dua li cov qauv siv los ntawm 30 feem pua txhua yam rigidity . HSK-A63 meej ntxaiv, ISO certified dynamic balanced, muab kev lag luam txhim khu kev qha ntawm kev ceev dua.
Siab -Speed Efficiency Processing & Excellent Surface Finish
Lub zog spindle muaj peev xwm yog 30 kW (yeem 33 kW); Qhov siab tshaj plaws spindle ceev yog teem rau 18,000 r / min; Qhov siab tshaj plaws torque ncav cuag 72 N·m; Nws tuaj yeem ua lub teeb alloy siab -kev ceev machining thiab kev ua tiav ntawm siab - lub zog steel. Tus qauv los nrog 40- cuab yeej- tiaj tus- saws - hom ntawv xov xwm uas tuaj yeem ua tiav cov cuab yeej- hloov ua haujlwm li ntawm ob mus rau plaub vib nas this, yog li nce ntau- txheej txheem txuas ntxiv thiab txo lub sijhawm tsis ua haujlwm los ntawm tsib caug- tsib feem pua. Axial txias ntawm spindle kom txo nws tus kheej kub yog txaus kom tau ib tug nto roughness Ra0.3μm, thiab tsis muaj ntxiv zoo tuning ua hauj lwm yuav tsum tau raws li cov kev cai nruj heev rau cov high-precision Cheebtsam.
Intelligent Kev Ua Haujlwm & Kev Tswj Xyuas Zoo
Nruab nrog lub siab -kev ua tau zoo CNC system (xws li Siemens 840D SL lossis Fanuc 31iB), nws tuaj yeem paub ib txhij tsib-axes machining, RTCP muaj nuj nqi, thiab DNC online kho kom yooj yim rau kev ua haujlwm yooj yim rau kev ua haujlwm nyuaj rau curvilinear nto machined los ntawm cov neeg ua haujlwm [3][6]. Ntau cov ntaub ntawv pov thawj tau txais txiaj ntsig, suav nrog CE, ROHS thiab ISO9001, thiab lwm yam. Tom qab ntau tshaj xya hnub sib law liag ntawm kev ua haujlwm yam tsis muaj qhov ua tsis tiav lossis dhau qhov kev xeem txiav -tawm qhov taw tes. Muaj Modular muab los txhawb kev teeb tsa cov cuab yeej tsis siv neeg thiab ntawm - qhov chaw ntsuas nyob rau hauv cov xwm txheej sib txawv, yog li muaj ntau yam kev ua tiav tuaj yeem ncav cuag.
Cov khoom tseem ceeb technical parameter
|
SPECIFICATIONS |
Chav tsev |
AMU 800 |
|
Lub rooj loj |
mm |
Φ800 |
|
T- qhov loj me |
mm |
18H8 |
|
Rooj center qhov |
mm |
φ50H8 |
|
Max. rooj load |
kg |
1200 |
|
X-axis taug kev |
mm |
850 |
|
Y-axis taug kev |
mm |
850 |
|
Z-axis taug kev |
mm |
700 |
|
A -axis rotation range |
degree |
±120 |
|
C-axis kev sib hloov ntau yam |
degree |
360 |
|
Qhov deb ntawm spindle qhov ntswg mus rau lub rooj saum npoo |
mm |
150-850 |
|
Spindle taper |
-- |
HSK{0}}A63 |
|
Max. spindle ceev |
rpm ua |
18000 |
|
Spindle lub cev muaj zog |
kW |
30 |
|
Max.torque ntawm spindle |
N.m |
72 |
|
Cov cuab yeej magazine hom |
-- |
Flat Chain Hom |
|
Cov cuab yeej magazine muaj peev xwm |
pcs |
40 |
|
Max.diameter cuab tam (full/Empty) |
mm |
Φ76/125 |
|
Max.tool length |
mm |
300 |
|
Max.tool luj |
kg |
8 |
|
Lub sijhawm hloov cuab yeej (T-T) |
S |
2-4 |
|
Ceev ceev ceev (X / Y / Z) |
hli/min |
32000/32000/32000 |
|
Txiav pub ceev (X / Y / Z) |
hli/min |
1-10000/1-10000/1-10000 |
|
Positioning raug (X / Y / Z) |
mm |
0.0075 |
|
Positioning raug (A/C) |
μm |
±5 |
|
Rov ua dua qhov tseeb (X / Y / Z) |
mm |
0.005 |
|
Rov ua dua qhov tseeb (A/C) |
μm |
4 |
|
Tshuab hnyav |
kg |
18000 |
|
Tshuab tag nrho loj (L * W * H) |
mm |
5500*4000*3500 |
Tshuab Txheem Paub meej
TAIWAN PreCISION SPINDLE
1. Spindle taper yog HSK-A63;2. Spindle ceev 18000rpm
3. Spindle dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1. Txuj nrog Taiwan 32 Arm tool magazine, lub sijhawm hloov pauv tsuas yog 3 vib nas this.2. Hom tshuaj: OKADA
LEAD Screw thiab coupling
1.Taiwan precision txhuas ntsia hlau.
2.Tej ntsia hlau bearing siv SKF lossis NACHI bearing,
3, Coupling R + W ncaj qha txuas.
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
2. Hom: HIWIN lossis PMI
TSEEM CEEB SYSTEM
Txheem: Siemens 840D / Siemens ONE tswjYeem: GSK ect.
AIR CONDITIONER
Standard nrog Industrial hluav taws xob txee cua txias. Txias lub thawv hluav taws xob zoo dua.
LUBRICATION SYSTEM/AIR STORAGE TANK
Tsis siv neeg centralized lubrication ntaus ntawv.Cua cia tank los xyuas kom meej stability ntawm spindle cuab tam hloov
2. ceev ntsaws raws li tus qauv
Txheem nrog Pneumatic Cheebtsam
Siab - phom cua siab thiab siab - phom dej siab
KEV KAWM
Txhua lub tshuab dhau Renishaw laser interferometer kuaj thiab ntsuas ballbar
Daim ntawv thov Scenario
Aerospace siab -Cov Cheebtsam Precision:Dav siv rau kev ua haujlwm aerospace core Cheebtsam xws li cav turbine hniav, roj nozzles, thiab drone precision structural qhov chaw. AMU800 muaj qhov zoo tshaj plaws ultra- siab- kev ua tau zoo thiab qhov kub thiab txias ua haujlwm ua haujlwm raws li qhov yuav tsum tau teev tseg los ntawm kev lag luam aerospace rau qhov kev ua siab ntev; nws kuj yog ib qho kev xaiv zoo rau kev ua cov complex-zoo li qhov chaw- nkhaus nto nyob rau hauv aerospace Cheebtsam.
Cov Khoom Siv Kho Mob Precision:Daim Ntawv Thov Hauv Kev Ua Haujlwm Siab -Precision Medical Implants, Surgical Instruments Thiab Dental Zirconia Crowns . Ib qho ultra- qib siab ntawm smoothness yog ua tiav kom tsis txhob muaj cov txheej txheem thib ob, tswj hwm Biocompatibility zoo thiab kev nyab xeeb rau cov khoom siv kho mob, thiab ua raws li qib siab - kev tu cev hauv kev kho mob.
High-Txoj kev tsim pwm:Haum rau kev ua haujlwm siab -precision me-rau- pwm nruab nrab, xws li precision txhaj pwm inserts, tuag-casting pwm rau cov khoom siv hluav taws xob, thiab micro- pwm. Tsib -axis linkage thiab siab- cov cuab yeej siv tau zoo yog qhov zoo ntawm kev tuav cov pwm nyuaj-kab noj hniav ua haujlwm sai nrog ib qho clamping quab yuam cov tswv yim, yog li ncua kev pab cuam lub neej thiab txhim kho rov ua dua ntawm pwm qhov chaw.
Precision Instruments & Electronic Cheebtsam:Ua cov cuab yeej precision qhov chaw, cov khoom siv hluav taws xob sib txuas, thiab cov iav me me. Qhov raug siab thiab ruaj khov ntawm AMU800 pab tswj qhov kev ntseeg tau thiab lub neej ntev ntawm kev ntsuas ntsuas cov cuab yeej nyob rau hauv txoj kab nrog Miniaturization, cov lus qhia meej heev rau cov khoom siv hluav taws xob.
High -Precision Custom Processing:Zoo tagnrho rau me me -batch custom processing high-precision complex parts, xws li robotics precision joints, optical components, and nuclear power micro-components. Nws qhov raug siab heev thiab yoog raws hauv kev tsim ua rau nws tsim nyog rau ntau yam kev xav tau ntawm kev ua haujlwm siab -kawg cov khoom tshwj xeeb kom txo qis kev ua haujlwm thiab ua kom cov zis ntau ntxiv.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm High precision cnc milling tshuab machining AMU800?
A: Lub worktable Loj yog φ800 hli thiab tuaj yeem tuav txog 1200 kg. X / Y / Z axis mus ncig yog 850 × 850 × 700mm, A-axis kev sib hloov ntau yam ± 120 degree, C-axis 360℃nruam kev sib hloov. Spindle Ceev: 40 ~ 18,000RPM; Qhov tseeb ntawm txoj haujlwm yog ± 0.0075mm (X / Y / Z) thiab ± 0.004mm (A / C); Qhov ua yuam kev rov ua dua yog tsawg dua lossis sib npaug rau ± 0.005mm. Spindle lub cev muaj zog: 30 kW; yeem 33 kW, Tool Magazine Peev Xwm: 40 chaw nres tsheb.
Q: Dab tsi yog qhov zoo ntawm cov ntxhia casting qauv piv nrog cov tsoos cam khwb cia hlau?
A: Mineral castings tuaj yeem txo qhov kev vibrations piv nrog cov Cast Iron zoo tib yam thiab muaj kev ua haujlwm zoo dua vim tias qhov roughness ntawm qhov chaw tom qab machining siab dua. Kuj muaj thermal stability zoo heev los txo cov thermal deformation vim qhov kub thiab txias hloov thiab xyuas kom ntev -lub sij hawm ruaj khov precision ntawm cov cuab yeej.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab cov cuab yeej siab tshaj plaws nws txhawb nqa yog dab tsi?
A: Feem ntau cov txheej txheem siab - cov ntaub ntawv hlau muaj zog, suav nrog titanium alloys, stainless hlau thiab pwm steels; kuj tuav cov khoom tsis yog-hlau, xws li zirconia thiab carbon fiber. Kev txhawb nqa rau cov cuab yeej loj tshaj plaws yog φ76mm (tag nrho) / φ125mm (tsis muaj), thiab nws cov lus qhia tshwj xeeb suav nrog cov cuab yeej ntev tshaj plaws ntawm 300mm, lub cuab yeej loj tshaj plaws ntawm 8kg.
Q: Yuav ua li cas tom qab- cov kev pabcuam muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Lub Sijhawm Warranty Generalized yog 18 lub hlis thiab ntev npaum li qhov zoo sib xws ntawm tsib -axis tshuab cuab yeej. Peb muab 24-teev kev pabcuam hauv online, kho ntawm qhov chaw, hloov cov khoom siv tiag, tsis muaj-txheej txheem kev cob qhia tus neeg ua haujlwm, nrog rau On- qhov chaw ua ntej- kev pabcuam kev xa khoom. Cov khoom seem yuav tsum tau tuaj txog ib lub lim tiam dhau los thiab yog qhov chaw-los ntawm qhov chaw kuaj xyuas lawv qhov tseeb tam sim (kev pabcuam them nyiaj).
Q: Dab tsi yog lub zog thiab huab cua siab yuav tsum tau, thiab yuav ua li cas tswj nws ultra{0}}siab precision?
A: Lub zog hluav taws xob yog 380V / 50Hz; Thiab Qhov Yuav Tsum Muaj Cua Siab, 6KGf / c㎡. Txhawm rau kom ntseeg tau tias ultra-siab precision tsis tu ncua calibrate lub laser, tuav ib tug rhiav kub nyob rau hauv ± 1 degree, xaiv G2.5 balanced cuab yeej tuav, thiab tshuaj xyuas cov grating kav thiab teb -axis tawm tswv yim ntaus ntawv tsawg kawg ib zaug txhua lub hlis.
