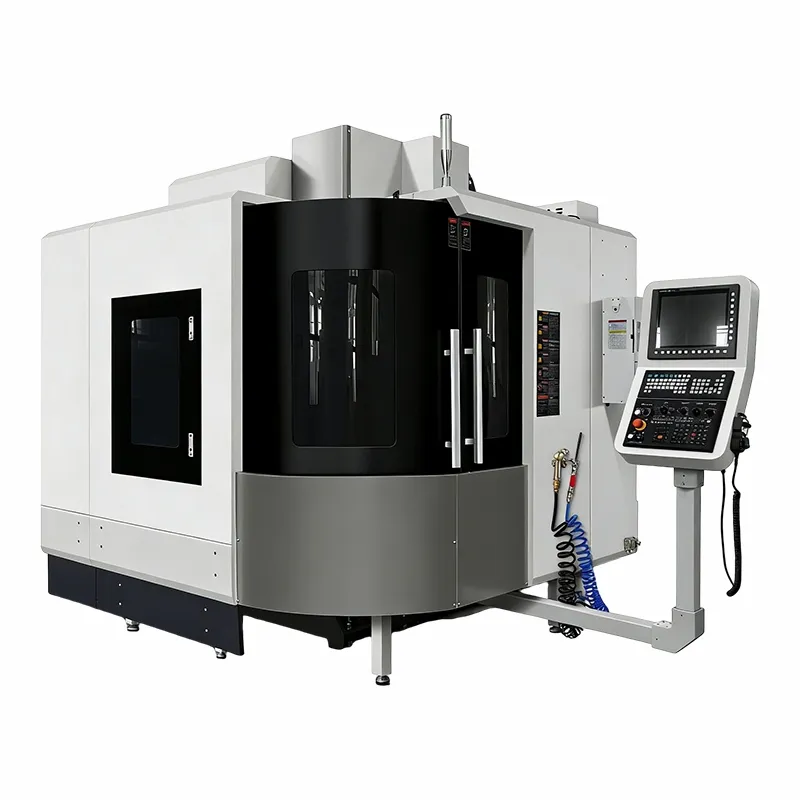

Kev kub ceev 5 axis cnc milling tshuab AMC500 yog qhov siab - ua haujlwm tau zoo, siab -precision 3+2 tso tsib-axis CNC khoom, tshwj xeeb tsim rau me me - mus rau - nruab nrab batch, siab - ceev, thiab multi-angle workpiece txheej txheem nws tsom ntsoov rau qhov tseem ceeb ntawm kev ceev{11}} tshuab ceev; Nws khaws cov nqi -kev ua tau zoo ntawm peb-thiab-ob axes - Peb cov kab tawm (x/y/z), Qhov ceev yog siab Txiav Locks Ob Lub Teb Axes (a/c) Rau workpiece Orientation ) kom ua tiav ruaj khov thiab ua haujlwm siab. Txhawm rau daws cov teeb meem hauv cov tsoos 3+2 cov cav tov nrog kev txiav qeeb qeeb, tus nqi siab rau tag nrho -5-axis systems, thiab tsis txaus nto tiav los ntawm kev ua haujlwm sai. Haum rau kev ua aluminium alloy, stainless hlau, tooj dag, pwm steel thiab tsis yog{22}}hlau xws li carbon fiber thiab engineering yas; Nws tuaj yeem muab kev ceev ceev, qhov tseeb siab thiab tus nqi qis ntawm kev ua cov thev naus laus zis rau cov khoom siv hluav taws xob, cov khoom siv hauv tsheb, qhov tseeb tuag, Aerospace prototypes thiab qee qhov me me -batch-high-efficiency-manufacturing Industry.
Khoom zoo
Siab -Speed Processing & Excellence Efficiency
Amc500 yog ib hom kev txawj ntse heev thiab meej tsib axis multi-chaw ua haujlwm machining chaw uas tuaj yeem ncav cuag nws qhov siab tshaj plaws ntawm 12000 revolutions ib feeb (RPM). X / Y / Z peb -axis tshuab ua tiav qhov nrawm nrawm ntawm 60mm / min thiab txiav tus nqi siab txog 15mm / min, uas yog nrawm dua li cov tsoos 3+2 tshuab cov cuab yeej. Peb -ntxiv rau-ob txoj haujlwm- hom kev sib txuas ceev- siab-kev ua tau zoo 3D machining system nrog ntau lub kaum sab xis ntawm kev nkag tau siv luv, nruj-txiav- cuab yeej kom tsawg dua - kev vibration kom ruaj khov rau lub neej ntev dua.
3+2 Qhov chaw & Siab Precision
AMC500 tau siv ob qhov qis - daws teeb meem AC ob - cov lus teb; Qhov yuam kev rov ua dua ntawm txhua qhov axis yog nyob rau hauv ± 0.003mm hauv A-C tswj qhov system thiab hauv ± 0.004mm hauv X-Y-Z systems [1][5]. Ua tiav ib-lub sij hawm clamping rau ntau lub kaum sab xis / ntau qhov chaw ntawm lub workpiece, yog li zam kev ua yuam kev los ntawm kev rov qab clamping thiab txo tus nqi rov ua haujlwm kom tsawg dua 1%, Kev xaiv ua ke nrog kev kaw tiav- lub voj kaw lus thiab cov lus pom ntawm tus pas ntsuas, ua ke nrog cov khoom siv hluav taws xob zoo rau kev hloov kho qhov kub thiab txias siab - machining ceev kom ntev stability ntawm qhov raug.
Tus nqi - Ua haujlwm tau zoo & yooj yim
Piv nrog rau kev sib koom ua ke tag nrho tsib -axis ib txhij sib txuas, AMC500 muab 30 feem pua qis pib nqis peev thiab cov nqi ua haujlwm; yog li, nws yog qhov tsim nyog dua rau cov me me - thiab nruab nrab - cov lag luam loj nrhiav kev ua haujlwm siab - kev tsim khoom thiab txo cov nuj nqis. Nws muaj lub siab -kev ua tau zoo CNC system (xws li Fanuc, Siemens, lossis GSK 25i ntxiv), thiab txhawb nqa yooj yim 3+2 txoj haujlwm ua haujlwm, uas yooj yim rau tus tswv tshaj li 5 -axis programming Nws tsis yooj yim dua li tsib-axis ua tiav programming. Tsis pub dhau ob peb hnub, cov neeg ua haujlwm yuav tau ua tiav kev ua haujlwm ntawm lub tshuab kom txo tau cov nqi peev thiab ua kom cov khoom ua tau zoo.
Compact Structure & Versatile Configuration
AMC500 Tag Nrho Loj yog 2600mm * 2500mm * 2750mm, Net Nyhav yog li 5.5t; Qhov dav dav ntawm sab sauv yog qhov me me, thiab nws yuav tsum muaj tsawg dua nees nkaum square meters kom haum rau txhua yam khoom siv. Lub peev xwm ntawm 500x500mm workbench yog kwv yees li 300 kg, uas tuaj yeem ua tau raws li qhov me me feem ntau - mus rau - nruab nrab - qhov loj me. A 32-chaw nres tsheb tsis siv neeg hloov cuab tam uas siv sijhawm li ob thiab ib nrab vib nas this los thauj khoom tuaj yeem ua haujlwm ntau yam tsis tu ncua hauv koob (Machining Drilling Tapping Boring), thiab lwm yam). Cov khoom uas xaiv tau yog cov cuab yeej tsis siv neeg- teeb tsa qhov system, ceev- plua plav tshem tawm System, thiab lub nqus tsev vacuum{19}}clamping ntaus ntawv uas tuaj yeem hloov mus rau ntau yam siab -kev ua haujlwm ceev.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
AMC500 |
|
X/Y/Z-axis taug kev |
mm |
600/600/600 |
|
Max.Nyob deb ntawm Spindle End Face mus rau C-Axis Disc Surface |
mm |
20-620 |
|
Max.Nyob deb ntawm Spindle Center mus rau C-Axis Disc nto ntawm 90℃A-Axis |
mm |
300 (xaiv: 420) |
|
Qhov deb ntawm Spindle Center mus rau Kab Qhia Nto |
mm |
620 |
|
Spindle Specification |
mm |
150 |
|
Spindle Taper |
-- |
BT40 |
|
Max.Spindle Ceev |
RPM |
12000 |
|
Spindle Lub cev muaj zog |
KW |
7.5/11 |
|
X/Y/Z Rapid Traverse |
m/min |
48/48/48 |
|
Txiav Feed Rate |
mm/min |
1-12000 |
|
Rotary Table Drive Hom |
-- |
Direct tsav |
|
Rotary Table Diameter |
mm |
320 |
|
Rotary worktable txoj kab uas hla |
mm |
500 |
|
Max loading peev xwm ntawm Rotary worktable |
kg |
100 |
|
Tool Magazine |
T |
24 |
|
Tool Hloov Sijhawm |
s |
3 |
|
Max.Tool Diameter (Tag Nrho / Nyob ib sab) |
mm |
70/120 |
|
Max.tool length |
mm |
300 |
|
Max.tool luj |
kg |
8 |
|
Tshuab hnyav |
T |
5.5 |
|
Tshuab tag nrho loj (L * W * H) |
mm |
2600*2500*2750 |
Tshuab Txheem Paub meej
Rotary worktable
Standard nrog rotary worktable.
TSEEM CEEB SYSTEM
Txheem: GSK980 / KND1000 tswj
TAIWAN PRECISION SPINDLE
1. Taiwan spindle BT40 8000rpm
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.Taiwan OKADA caj npab 24 cuab yeej magazine .
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 Nto moo hom taub hau ntsia hlau,
2. txhuas ntsia hlau bearing sivSKF lub NACHIbearing,3. kev sib txuasYCtxuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERG Tsis siv neeg nruab nrab lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1.s ibSchneiderkev ruaj ntseg hluav taws xob Cheebtsam
2. Qua plugraws li tus qauv
Daim ntawv thov Scenario
Electronic Cheebtsam Manufacturing:Dav siv los ua cov txheej txheem siab -cov khoom siv hluav taws xob muaj tseeb, suav nrog cov xov tooj ntawm tes, cov khoom siv hluav taws xob sib txuas, thiab cov ntim ntim ntim pwm [1][6]. AMC-500 muaj qhov tsis siv neeg- nrawm- hloov pauv kev ua haujlwm rau lub spindle thiab 3+2 txoj haujlwm hom tuaj yeem ua cov txheej txheem nkhaus nkhaus thiab qhov kaum sab xis; Nws ua haujlwm ntau yam ntawm qhov chaw nkhaus, lub kaum sab xis qhov teeb tsa ntawm tus nqi qis kom tau raws li qhov xav tau ntawm cov khoom siv hluav taws xob ntau.
Automotive Precision Parts Ua:Ua ntawv thov los tsim cov khoom lag luam ntawm cov tsheb, suav nrog cov cav tov, kev sib kis, thiab cov roj teeb lub tais. Nws yog qhov ceev ceev kom luv lub voj voog ntau lawm nws tus kheej, tuaj yeem zam qhov tsis ruaj khov ntawm clamping raug tshwm sim los ntawm kev rov ua dua los ntawm kev txo nws; haum rau nruab nrab-me me- nplai batch lossis txawm ib daim.
Precision Pwm & Tuag Ua:Txais siv rau kev ua cov pwm meej, suav nrog qee qhov kev txhaj tshuaj- pwm- ntxig thiab tuag- nrum- pwm ntxiv rau qhov tob - kab noj hniav -cores; kuj haum rau lwm yam kev siv. AMC500 tuaj yeem ua cov ntaub ntawv ntawm kev kub ceev, thiab 3+2 qhov chaw tau ua tiav qhov nyuaj nyob rau hauv kev siv tsis zoo rau peb -axial tshuab ua haujlwm thiab txo cov txheej txheem thib ob hauv pwm tsim los ntawm qib siab dua.
Aerospace Prototyping:Ua Aerospace Prototypes, me me cav Cheebtsam thiab Drone Structures Parts . Siab - nrawm thiab meej, haum rau cov chaw tshawb fawb kom ceev cov qauv kev loj hlob; lub 3+2 txoj hauj lwm hom ua tau raws li ntau- lub kaum ntse ntse ua haujlwm ntawm cov khoom siv dav hlau.
Siab -Speed Custom Manufacturing:Qhov zoo tshaj plaws rau me me -batch, ntau- ntau yam kev cai ua ntawm ntau- lub ntsej muag workpieces, xws li cov khoom siv robotics, precision ntsuas qhov chaw, thiab kev cai fixtures. Siab -kev ua haujlwm ceev thiab kev ua haujlwm yooj yim ntawm AMC-500 tau ua kom yooj yim rau kev cai- ua haujlwm ib feem; Qhov no yog qhov tsim nyog rau qee qhov kev pib ua haujlwm thiab kev cob qhia me me uas xav tau kev ua haujlwm siab ceev.
FAQ
Q: Dab tsi yog qhov tseem ceeb ntawm kev kub ceev 5 axis cnc milling tshuab AMC500?
A: Qhov loj ntawm lub rooj ua haujlwm: 500mm x 500mm, Qhov siab tshaj plaws Load: 300kg. X / Y / Z axis mus ncig yog 600 × 600 × 600mm, A-axis rotation range ± 120 degree, C-axis 360℃nruam indexing. Spindle ceev ntau yam: 40-12000r / min; Kev khiav ceev ceev: 60m / min; Qhov tseeb ntawm X / Y / Z axis ± 0.004mm thiab A / C axis ± 0.003mm; Repeat Positioning Precision ± 0.002mm. Spindle lub cev muaj zog: 22 kW (optionally, 28 kW); Cov cuab yeej magazine muaj peev xwm: 32 Chaw nres tsheb (yeem 40 chaw nres tsheb).
Q: Dab tsi yog qhov txawv ntawm AMC500 thiab zoo tib yam 3+2 tsib-axis tshuab (piv txwv li, AMC400)?
A: Qhov sib txawv hauv cov haujlwm tseem ceeb: siab -precision processing; Lub spindle ceev ntawm AMC500 yog siab li 12000 rpm thiab qhov ceev traverse ceev tuaj yeem ncav cuag 60 mm / min. Tsis tas li ntawd, nws ntxiv qhov kev txawj ntse Thermistor yuam kev- cov nyiaj them poob haujlwm los tiv thaiv qhov tsis zoo ntawm kev kub ceev; lub sijhawm no, nws tuav tus nqi -kev ua tau zoo thiab yooj yim- ntawm- kev ua haujlwm ntawm 3 + 2- qhov chaw.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab nws tuaj yeem ua haujlwm siab - ceev txiav ntawm lub teeb alloys?
A: Cov txheej txheem hlau xws li txhuas alloy, stainless hlau, bronze, thiab pwm hlau; Kuj tseem ua cov khoom tsis yog -cov khoom siv hlau xws li Carbon Fiber Thiab Engineering Plastics. Yog lawm, nws 22kW ncaj qha-tsav ntxaiv thiab siab- nrawm pub qhov system tshwj xeeb yog ua kom zoo rau lub teeb alloys, ua kom siab- ceev txiav ntawm aluminium alloy nrog qhov chaw tiav ntawm 0.2μm yam tsis muaj polishing ntxiv.
Q: Yuav ua li cas tom qab- kev muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Tus qauv lav rau ob xyoos, cov khoom tseem ceeb ntawm lub spindle / teb rooj / CNC system yog them los ntawm tsib- xyoo lav. Muab ib puag ncig- lub- kev pabcuam moos, ntawm- kev pabcuam kho qhov chaw, muab cov khoom qub qub, muab kev cob qhia tus neeg ua haujlwm pub dawb tsom rau kev ua haujlwm siab - nrawm 3+2, thiab ua yeeb yaj kiab ua ntej - kev tshuaj xyuas ua ntej xa khoom. Nws yuav raug xa tawm rau hnub ntawd.
Q: Puas yog nws tsim nyog rau kev cob qhia me me, thiab cov kev xav tau ntawm lub zog thiab cua siab yog dab tsi?
A: Yog, Nws qhov loj me yog 2600 x 2500 × 2750 mm; Tsim nyog nruab nrab hauv Nyhav tsuas yog 10 tonnes. Fais fab mov voltage yog 380V / 50HZ, Cua Siab ntau yam: 6 ~ 8KGf / Cm², Tau tshaj cov dav dav qis- nruab nrab- loj lub Hoobkas fais fab khoom siv rau kev teeb tsa yooj yim thiab txhim khu kev lag luam siab ceev.
