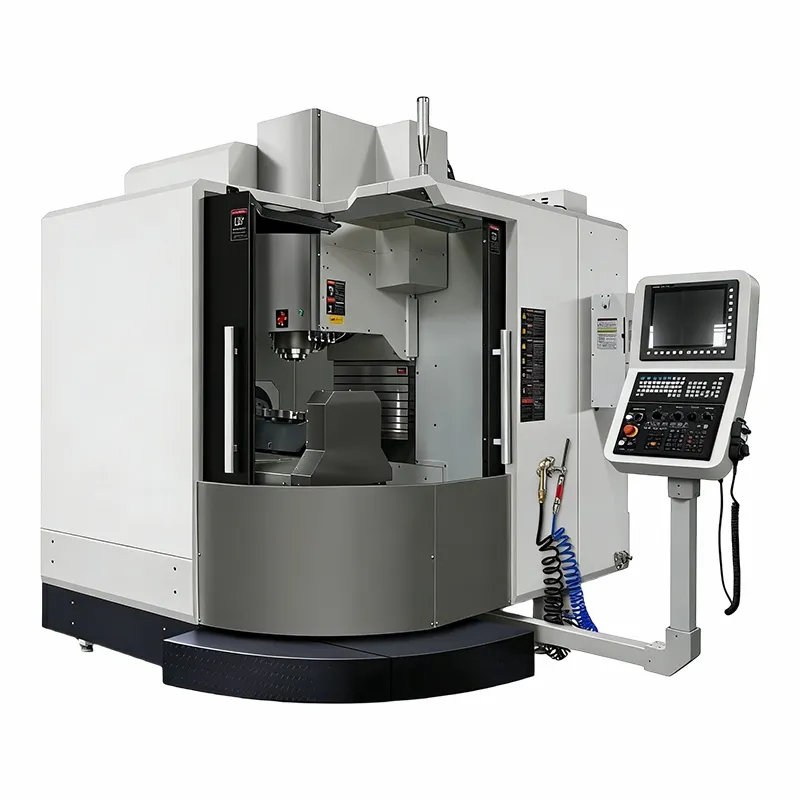

5 axis ntsug machining chaw AMC400 yog tus nqi- ua haujlwm tau zoo heev peb-thiab- ob- tso tsib-axis CNC tshuab cuab yeej tshwj xeeb rau cov khoom me me, ntau lub kaum ntse ntse thiab siab - ua haujlwm siab ua haujlwm - qhov chaw ua haujlwm ntsug MC00. Nws yog raws li lub hauv paus ntsiab lus tseem ceeb ntawm 3+2-txoj hauj lwm tshuab cuab tam - siv peb kab axes (X/Y/Z) txav txiav thiab ob lub rotating axes (A/C) rau kev ua hauj lwm-txoj kev taw qhia, uas yog tsau nyob rau hauv qhov chaw thaum ua tej hauj lwm txiav mus cuag ruaj khov 3-axis machining. Nws hais txog cov teeb meem xws li tus nqi siab ntawm tag nrho tsis siv neeg tsib-axis tshuab, programming nyuaj thiab nquag rov ua dua-clamping yuam kev rau peb-seem ua haujlwm-pieces; Nws yog tsim rau machining aluminium alloys, stainless hlau, pwm steels, tooj dag, engineering yas thiab lwm yam uas tsis yog{20}}hlau xws li zirconia; Muab tus nqi qis -tus nqi, yooj yim, thiab yooj yim- siv cov kev daws teeb meem los ua cov khoom siv tsheb, cov pwm meej, cov khoom siv hluav taws xob, cov khoom siv kho mob thiab cov khoom me me ntawm qee qhov chaw ua haujlwm.
Khoom zoo
3+2 Qhov chaw hom & Kev ruaj ntseg siab
Raws li qib siab 3+2 tsib-axis machining chaw nrog ib zaug -A-C dual-rotary- rooj kaw lus hauv qab: ± 110 degrees rau X axis, peb- pua- rau caum-degree ntawm Yrotation; Tom qab orienting optimally, nws locks ob rotational axes kom ua tiav kev txiav.[1][9] Txoj hauv kev no suav nrog qhov muaj zog ntawm peb -axis stability thiab tsib-axis ntau-angle Accessibility kom tsis txhob muaj tus nqi siab thiab qhov nyuaj ntawm kev ua tiav tsib-axis ib txhij txuas; Lub sijhawm no, nws muaj kev nruj dua li dynamic tsib-axis tshuab cuab yeej . A/C-Axis repeatability positioning yuam kev hauv 0.004 mm; X / Y / Z-axis ± 0.005 mm kom tsis txhob muaj qhov yuam kev tshwm sim los ntawm kev sib tsoo ntau zaus.
Nqis -Kev Ua Haujlwm Zoo & Yooj Yim
AMC400 Piv nrog rau tag nrho -5-axis ib txhij-Txuas Tshuab, muaj qhov pib nqis peev tsawg thiab cov nqi ua haujlwm; yog li ntawd, nws tuaj yeem ua ib qho khoom siv nkag rau cov tuam txhab me me thiab nruab nrab- loj los txhim kho lawv cov txheej txheem ntau -axis machining. Nws muaj qhov yooj yim NC system (piv txwv li, Fanuc, Siemens, GSK), uas tuaj yeem tsim kho raws li 3 + 2 qhov chaw ua haujlwm; Tsis ntev los no CAM software txhawb nqa xws li txoj haujlwm Programming yam tsis tas yuav muaj kev mob siab rau tsib-axes Modules.Tus neeg teb xov tooj ntawm peb-dimensional cutter tuaj yeem kawm ua haujlwm sai thiab yog li txo cov nqi zog.
Versatile Processing & Strong Adaptability
Qhov loj ntawm qhov chaw ua haujlwm yog 400x400mm, thiab nws qhov siab tshaj plaws load -cov kabmob muaj peev xwm ncav cuag 200kg; Nws yog qhov yooj yim los ua cov khoom me me - mus rau - nruab nrab - workpieces loj, suav nrog ntau - lub ntsej muag lub thawv qhov chaw, pwm inserts thiab lub kaum ntse ntse qhov Cheebtsam . Txhawb kev ua haujlwm tas mus li ntau- txheej txheem ua haujlwm (milling, drilling, tho txawv, threading), muaj peev xwm ntawm 24 (exandable mus rau 32); Cov cuab yeej hloov lub sijhawm luv luv li 3 ~ 5 vib nas this. HSK-A50 spindles muaj qhov siab tshaj plaws kev sib hloov ceev ntawm 12,000 rpm thiab tuaj yeem ncav cuag siab li 15 kW hauv qhov tseeb qis- txiav cov txheej txheem; Cov cuab yeej luv luv tab sis cov khoom txiav,
Compact Structure & Txhim khu kev ua tau zoo
Zuag qhia tag nrho Loj: 2500 x 2300 mm × 2700 mm; Net Nyhav: 4.5 t, Compact Vertical Structure, Yuav tsum tau tsuas yog 12-16 square metres Pem teb Qhov Chaw Tsim Nyog Rau Kev Ua Haujlwm Me thiab R&D Labs . Cov khoom tseem ceeb, suav nrog lub txaj thiab kem, yog ua los ntawm siab - zoo HT300 cam khwb cia hlau los ntawm kev casting thiab dual - kev ntxhov siab - kev kho mob kom ntseeg tau tias lawv zoo heev rigidity thiab ntev - lub sij hawm kom raug. Muaj cov roj uas tsis siv neeg cov roj siv roj ntau tshaj nees nkaum plaub lub sijhawm sib law liag txhua hmo, ua raws li daim ntawv pov thawj CE, ROHS txwv, ISO9001 cov cai, thiab lwm yam.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
AMC400 |
|
X/Y/Z-axis taug kev |
mm |
500/500/500 |
|
Max.Nyob deb ntawm Spindle End Face mus rau C-Axis Disc Surface |
mm |
20-520 |
|
Max.Nyob deb ntawm Spindle Center mus rau C-Axis Disc nto ntawm 90℃A-Axis |
mm |
250 (xaiv: 340) |
|
Qhov deb ntawm Spindle Center mus rau Kab Qhia Nto |
mm |
525 |
|
Spindle Specification |
mm |
150 |
|
Spindle Taper |
-- |
BT40 |
|
Max.Spindle Ceev |
RPM |
12000 |
|
Spindle Lub cev muaj zog |
KW |
7.5/11 |
|
X/Y/Z Rapid Traverse |
m/min |
48/48/48 |
|
Txiav Feed Rate |
mm/min |
1-12000 |
|
Rotary Table Drive Hom |
-- |
Direct tsav |
|
Rotary Table Diameter |
mm |
260 |
|
Rotary worktable txoj kab uas hla |
mm |
400 |
|
Max loading peev xwm ntawm Rotary worktable |
kg |
60 |
|
Tool Magazine |
T |
24 |
|
Tool Hloov Sijhawm |
s |
3 |
|
Max.Tool Diameter (Tag Nrho / Nyob ib sab) |
mm |
70/120 |
|
Max.tool length |
mm |
300 |
|
Max.tool luj |
kg |
8 |
|
Tshuab hnyav |
T |
4.5 |
|
Tshuab tag nrho loj (L * W * H) |
mm |
2500*2300*2700 |
Tshuab Txheem Paub meej
Rotary worktable
Standard nrog rotary worktable.
TSEEM CEEB SYSTEM
Txheem: GSK980 / KND1000 tswj
TAIWAN PRECISION SPINDLE
1. Taiwan spindle BT40 8000rpm
2. Dhau dynamic tshuav nyiaj li cas ISO ntsuam xyuas
TAIWAN TOOL MAGAZINE
1.Taiwan OKADA caj npab 24 cuab yeej magazine .
2. cov cuab yeej hloov lub sijhawm tsuas yog 2-3 vib nas this.
1 Nto moo hom taub hau ntsia hlau,
2. txhuas ntsia hlau bearing sivSKF lub NACHIbearing,3. kev sib txuasYCtxuas ncaj qha
TAIWAN PRECISION LINEAR rails
1. Taiwan high speed roller linear guide rail, positioning precision tuaj yeem ncav cuag μm class
LUBRICATION SYSTEM
HERG Tsis siv neeg nruab nrab lubrication ntaus ntawv.
PNEUMATIC COMPONENTS
Txheem nrogAirTACPneumatic Cheebtsam
1.s ibSchneiderkev ruaj ntseg hluav taws xob Cheebtsam
2. Qua plugraws li tus qauv
Daim ntawv thov Scenario
Automotive Parts Manufacturing:Dav siv los ua cov khoom siv hauv tsheb, suav nrog lub cav lub cev lub cev, lub qhov sib kis ntawm lub qhov thiab lwm qhov sib npaug - qhov chaw . Qhov peb -thiab-ob- aimed- rau- txoj hauj lwm hom ntawm AMC400 tso cai rau ib lub sij hawm clamp los tuav ntau lub kaum sab xis ntawm lub tsheb qhov chaw machining, yog li tshem tawm tsis tu ncua rov ua dua-clamping yuam kev thiab nce productivity; Nws muaj feem xyuam rau qis- ntim loj- ntau lawm.
Precision Pwm & Tuag Ua:Siv rau kev tsim cov me me - mus rau nruab nrab - loj siab - pwm precision, xws li Txhaj Mould inserts, Tuag- Casting Pwm Thiab Pwm Bases Nrog Angled Feature. Ib qho peb-thiab-ob- txoj haujlwm txoj haujlwm feem ntau muaj teeb meem mus txog qhov nyuaj workpieces lossis nyuaj- mus rau- thaj chaw ntawm cov khoom ntawd; Peb -axis machinery feem ntau tsis tuaj yeem ua qee yam ntawm lawv.
Electronic Cheebtsam & Precision Instruments:Haum rau kev ua cov khoom siv hluav taws xob sib txuas, cov cuab yeej precision 'qhov chaw, thiab ntau-lub kaum sab xis micro- iav daim ntawv thov. High precision thiab ua haujlwm yooj yim ntawm AMC400 tuaj yeem txhim kho qhov tseeb ntawm cov khoom me me; Nws kuj haum zoo nrog cov me me txoj kev loj hlob ntawm cov cuab yeej hluav taws xob.
Kev kho mob Accessories:Kev ua cov cuab yeej kho mob Miniaturization, kho hniav accessories thiab kho hniav prosthetics yooj yim, thiab lwm yam. Nws ua tiav qhov siab thiab qhov tseeb ua tau raws li kev nyiam huv huv thiab kev ua tau zoo ntawm kev lag luam kev kho mob, thiab tus nqi - siv tau zoo yog tsim rau me me -batch kho mob ib feem ntau lawm.
Small -Batch Custom Manufacturing:Zoo tagnrho rau cov me me -batch, ntau- ntau yam, kev cai ua ntawm ntau-fab workpieces, nrog rau cov khoom siv robotics, kev cai fixtures thiab mechanical parts . Lub 3+2- hom kev tso npe tuaj yeem sib npaug ntawm kev ua haujlwm Flexibility thiab nqi ua ke; Qhov yooj yim -programming Feature ua Part Processing ntau tus neeg siv- phooj ywg; Yog li Nws yog qhov tsim nyog rau kev pib- nce Kev Lag Luam Thiab Kev Ua Haujlwm me me los siv.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm 5 axis ntsug machining chaw AMC400?
A: Lub worktable qhov ntev yog 400x400 mm thiab nws qhov siab tshaj plaws payload yog 200 kg. X / Y / Z axis mus ncig yog 500 × 500 × 500mm, A-axis rotation range ± 120 degree, C-axis 360℃nruam indexing. Spindle Speed Range: 40 ~ 12,000 rpm; Positioning yuam kev ± 0.005 mm(x/y/z); Rov qab-rau-Home Accuracy ± 0.004 mm(a/c); Repeatability ntawm txoj hauj lwm ± 0.003 hli. Lub zog spindle lub cev muaj zog yog 15kW (yeem 18.5kW), cov cuab yeej magazine muaj peev xwm 24 chaw nres tsheb (yeem 32 chaw nres tsheb).
Q: Dab tsi yog qhov txawv ntawm 3+2 qhov chaw thiab tag nrho 5-axis ib txhij txuas?
A: Qhov txawv ntawm Core yog Rotational Axes; 3 + 2 Qhov chaw ua ntej taw qhia qhov ua haujlwm-daim nrog ob lub voj voog, Tom qab ntawd xauv nws thiab ua peb - axis Txiav; Tag Nrho Tsib -Axis Linkage txav Tag Nrho Tsib Axes ib txhij thaum txiav.[1] [3] [9] AMC400 peb ntxiv rau ob hom yog tus nqi qis dua, kev ua haujlwm yooj yim thiab muaj zog dua-hauv-thaum- txiav; Tag nrho tsib-axes yuav tsum tau siv rau qhov nyuaj tshaj plaws Free form deg ua haujlwm.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab nws puas tuaj yeem tuav undercuts thiab angled qhov?
A: Nws ua cov khoom siv hlau, suav nrog Alloys, Stainless Steels thiab pwm Steels; kuj suav nrog lwm yam Non{0}} Hlau, Engineering Plastics thiab zirconia (ZrO2)). Yog lawm, 3+2 txoj haujlwm hom tuaj yeem qaij lub workpiece ntawm qhov chaw zoo rau kev ua haujlwm yooj yim ntawm cov undercuts, lub kaum sab xis thiab ntau - dav hlau uas 3-axis tshuab tsis tuaj yeem ncav cuag.
Q: Yuav ua li cas tom qab- kev muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Cov ntsiab lus Warranty: Ib tus qauv ob- xyoo lav ntxiv rau peb xyoos ntxiv rau ntawm qhov spindle, rotatable worktable thiab puv - ua haujlwm CNC system. Nyob ib ncig ntawm lub moos, peb muab ib puag ncig - lub - moos kev pabcuam hauv online; Ntawm - kev pab kho qhov chaw; Cov neeg ua haujlwm pub dawb kev cob qhia (tsuas yog tsom rau ntawm 3+2 programming); Ua ntej-Kev tshuaj xyuas kev xa khoom Video. Cov khoom seem yuav tuaj txog hauv ib lub lis piam.
