Shandong TaoFong CNC tshuab cuab yeej Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm x6325 turret milling tshuab hauv Suav teb, kuj txhawb kev pabcuam customized. Txais tos yuav zoo x6325 turret milling tshuab rau muag ntawm no los ntawm peb lub hoobkas. Kev pabcuam zoo thiab tus nqi tsim nyog muaj.

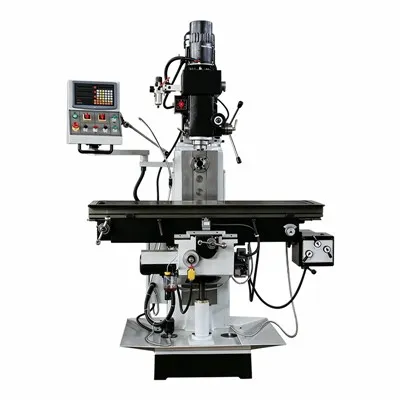

X6325 Turret Milling Tshuab yog txhua yam -vim ntsug ntsug- lub hauv caug turret- zeb uas tuaj yeem tswj tau manually, mechanically lossis muaj lub zog-Feed xaiv fitted.it muaj qhov tshwj xeeb spindle Tsim - tsis yog ib qho ruaj khov ntxaiv rau Kab rov tav lossis Ordinary Vertical Mills hloov tau sai - Kev koom ua ke. Txhawm rau daws cov teeb meem ntawm kev hloov pauv tsis tu ncua rau ib zaug - cov tshuab ua haujlwm hauv kev lag luam, kev ua haujlwm tsis txaus los ntawm kev ua haujlwm hnyav - cov txheej txheem ua haujlwm hnyav, thiab kev hloov pauv tsis pub dhau ntau hom khoom siv sib txawv. Nws yog tsim rau kev ua cov hlau zoo tib yam xws li carbon steel, stainless hlau, aluminium alloys, bronzes, thiab cam khwb cia hlau; Muab ib qho yooj yim, tsawg-tus nqi, ntau- kev ua haujlwm ua haujlwm rau me- rau nruab nrab- kev cob qhia me me, pwm, kho vajtse, cov khoom siv meej, kev kawm ua haujlwm, thiab lwm yam.
Khoom zoo
Unique Turret Spindle Design & Quick Tool Change
X6325 siv ib txwm tilting-torqued spindle, thiab nws muaj kev ua tau zoo dua li cov dav dav dav dav- lub hom phiaj kab rov tav lossis ntsug tsav tshuab cuab yeej; Turret Lub taub hau tig ± 90℃sab laug-Txoj cai; Tilt ± 45℃pem hauv ntej rear kom sai hloov txoj hauj lwm rau kev ua thaum xav tau, thiab ces txav mus [8]. Ntau lub cuab yeej teeb tsa tuaj yeem ua tiav tib lub sijhawm; Tom qab ib qho dhau ntawm machining xws li milling, Drilling, tho txawv, reaming thiab kais txiav, nws tuaj yeem tshem tawm lwm qhov. Lub spindle taper yog ua raws li tus qauv rau R8, los yog xaiv raws li ISO 30 / ISO 40; Muaj 127mm spindle ntau yam, thiab nws tuaj yeem tswj tau steplesslyat50Hz los ntawm kev xaiv los ntawm a65-4500rev / min ntau.
Sturdy Structure & Stable Precision
Qhov tseem ceeb ntawm X6325 suav nrog lub txaj, lub rooj ua haujlwm thiab kem, uas yog ua los ntawm cam khwb cia- hlau nrog lub zog siab, tom qab nws muaj hnub nyoog tsim kom tshem tawm cov kev ntxhov siab sab hauv, lawv muaj qhov zoo rigidity thiab vibration-damping zog. Y thiab Z-axis axis siv cov duab plaub lossis dovetail qhia txoj hauv kab nrog TF hnav cov ntaub ntawv, thiab lub rooj ua haujlwm -cov lus qhia yog kho nrog ultrasonic quenching hardening ntawm hardness siab tshaj 50 HRC rau kev tiv thaiv kev hnav kom muaj sijhawm ntev -. A 254 x 1270mm workbench uas txhawb nqa txog li 350kg hauv qhov hnyav thiab ua cov khoom me me, cov khoom me me lossis nruab nrab - cov khoom loj yam tsis muaj deformation.
Ntau-Operation Modes & High Efficiency
Txawm hais tias X6325 tau ua tiav phau ntawv, Kev Siv Hluav Taws Xob thiab tsis siv neeg lub zog-Phau kev ua haujlwm ua ke nrog kev tswj xyuas tau zoo heev thiab siab - txheej txheem- ceev kev ua tau zoo.Nws suav nrog peb -axis phau ntawv / tshuab pub modules thiab ib kauj ruam - los ntawm - kauj ruam tsis siv neeg quill increment ation ntawm 0.5/0.04/0. Nws muaj kev ua haujlwm ceev ceev kom txo tau lub sijhawm ua haujlwm. Ib sab hauv 2.2 kW lossis 3.75 kW siab - zog- ntom thawj lub cev muaj zog ua ke nrog kev pib- cua txias kom txo qhov kub thiab txias - nce, ua kom cov cua sov qis dua tus nqi tso cai rau kev ua haujlwm zoo. Piv nrog rau tag nrho cov tshuab tsis siv neeg, nws txuag lub sij hawm ntau lawm Los ntawm feem pua thiab lav qhov kev ua tiav.
Ntau yam & Nqis -Kev teeb tsa zoo
Hauv kev sib piv rau ntau-axis machining chaw thiab lub tshuab milling siab, X6325 ntawm tus qauv no yog qhov tsim nyog dua li qhov kev xaiv tus nqi qis rau cov lag luam me. Txhawb ntau hom machining xws li dav hlau txiav, grooving, cylindrical nto, Qhov Drilling, Tapping; muaj feem xyuam rau cov khoom sib txawv. Cov khoom siv xaiv tau yog peb -axis digital readouts, cov khoom siv hluav taws xob, faib cov laths thiab cov lus teb uas tuaj yeem nthuav dav hauv lawv cov kev ua haujlwm ntawm qee yam kev siv. Ergonomic tswj vaj huam sib luag, Yooj yim intuitive Cim Tsim thiab Kev Ua Haujlwm Caj Npab rau kev siv yooj yim.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
X6325 |
|
Rooj loj |
mm |
1270*254 |
|
Rooj mus ncig |
mm |
780/380/400 |
|
T qhov (tus naj npawb -dav * suab) |
- |
3-16*65 |
|
Spindle taper |
- |
R8 (opt.lSO40) |
|
Kab rov tav spindle taper |
- |
ISO 40 |
|
Spindle ceev ntau yam (cov kauj ruam) |
rpm ua |
50HZ: 65-4500, 60HZ: 80-5440 (16) (opt.(variable) 65-4000) |
|
Kab rov tav spindle ceev ntau yam (cov kauj ruam) |
rpm ua |
45-1350 (12) |
|
Spindle taug kev |
mm |
127 |
|
Kev ncua deb ntawm kab rov tav spindle qhov ntswg thiab rooj saum npoo |
mm |
50-450 |
|
Kev ncua deb ntawm spindle axis thiab rooj saum npoo |
mm |
0-400 |
|
Main lub cev muaj zog |
kws |
2.2(V)/3( H) |
|
Lub taub hau tig (sab laug - sab xis) |
o |
± 90 degree |
|
Lub taub hau tig (pem hauv ntej - rear) |
o |
± 45 degree |
|
Tshuab hnyav |
kg |
1750 |
|
Zuag qhia tag nrho (L * W * H) |
mm |
1550*1650*2250 |
Tshuab Txheem Paub meej
TAIWAN TURRETMILLINGHEAD
Taiwan turret milling taub hau tuaj yeem tig 45' (Pem hauv ntej-rov), tig 90'(sab laug-txoj cai).
UA HAUJ LWM
Ultra- suab quenchingprecision sib tsoo thiab scraping qhia
X/Y AXISAUTO FEED
X / Y Axis pib pub, Z axis hluav taws xob nqa
txhim kho lub sijhawm ua haujlwm
Nws yog xaiv tau, Xav tau tus nqi ntxiv
3 AXISORD
3 axis digital nyeem ntawv yog xaiv tau
xav tau tus nqi ntxiv.
Mechanical lubrication raws li tus qauv,
Fais twj tso kua mis lubrication raws li kev xaiv,
Xav tau tus nqi ntxiv
FAMOUS ELETRCTS
Txheem nrog
Famous Electrical Schneider $ Delixi Muaj
Daim ntawv thov Scenario
Pwm Manufacturing & Kho:Dav siv los ua cov khoom me me - mus rau nruab nrab- qhov loj ntawm cov pwm, feem ntau suav nrog kev txhaj tshuaj- pwm- ntxig, pwm- zawj thiab pwm- puag. Turret-spindle multi-angle adjustment thiab ceev- cuab yeej- kev hloov pauv tuaj yeem ua haujlwm tau zoo ntawm cov pwm pwm kab noj hniav thiab inclined nto kom txo qis kev ua haujlwm thib ob thiab txhim kho cov khoom tsim pwm.
Hardware & Precision Component Processing:Siv rau kev ua cov khoom siv kho vajtse thiab cov khoom siv meej, nrog rau cov iav me me, ntxaiv Shafts, cov twj paj nruag, cov khoom siv ntxiv, Auto accessories. X6325 muaj qhov siab ntawm qhov tseeb thiab tuaj yeem sib xyaw ua ke ntau cov txheej txheem los xyuas kom meej qhov tseeb thiab qhov roughness ntawm qhov ua tiav.
Me me -Batch Custom Processing:Muaj feem xyuam rau cov khoom me me -batch, ntau yam - ntau yam kev cai ua cov hlau qhov chaw, suav nrog kev cai fixtures, robotic Cheebtsam thiab tshwj xeeb -zoo li tus yam. Turret qauv thiab versatility ntawm nws configuration yog tsim los txo cov zaus ntawm kev hloov cov cuab yeej thiab kev teeb tsa, yog li ua kom cov khoom tsim tau rau me me - ntau pawg.
Cov Tsev Kawm Ua Haujlwm Kev Ua Haujlwm:Zoo tagnrho rau cov tsev kawm ua haujlwm thiab kev cob qhia, nrog rau cov tsev kawm cob qhia kom ua txhua yam kev kawm milling technology thiab kev ua haujlwm zoo. Ntau-kev ua haujlwm, T- qauv qauv tuaj yeem ua rau cov tub ntxhais kawm paub txog kev siv cov cuab yeej hloov pauv thaum txiav, paub ntau-txoj haujlwm ua haujlwm thev naus laus zis thiab ntau- kev sib koom ua haujlwm thev naus laus zis.
Small-rau- Kev Tsim Kho Kev Ua Haujlwm Nruab Nrab:Hauv me me mus rau nruab nrab-cov chaw cob qhia me me rau cov hlau dav dav- cov haujlwm ua haujlwm, suav nrog cov khoom siv tshuab-fab fab, kho vajtse- kho kom zoo nkauj sib dhos, thiab cov khoom siv tu. Compact Loj: 1550 x 1650 x 2250 mm; Tus nqi qis: kuj pheej yig; Kev ua haujlwm yooj yim: yooj yim rau kev khiav lag luam.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm X6325 Turret Milling Tshuab?
A: Worktable Loj 254 × 1270 mm nrog Load Capacity ntawm 350 kg. Spindle Speed Range: 65-4500 r / min (16-kauj ruam kev cai ntawm 50 Hz), Qhov tseeb qhov tseeb: ± 0.008 hli. Spindle taper: R8 lossis ISO 30 / ISO 40, Spindle Travel 127 mm. X / Y / Z axis mus ncig yog 780/400/400mm feem. Zuag qhia tag nrho qhov ntev: 1550 x 1650x2250mm; Net nyhav: 1400KG; Fais fab mov rau thawj chav tsev lub cev muaj zog: 2.2Kw (yeem 3.75kW).
Q: Qhov txawv ntawm X6325 thiab yav dhau los kab rov tav / ntsug mills yog dab tsi?
A: Qhov sib txawv tseem ceeb: Turret spindle Tsim tau tig los ua kom tiav cov cuab yeej thauj khoom thiab tshem tawm lossis ua haujlwm ntau -angle Kev Ua Haujlwm xws li Drilling thiab Milling; Txav los ntawm ib txoj hauj lwm piecework mus rau lwm qhov.;
Q: Cov ntaub ntawv hlau twg tuaj yeem ua tau, thiab nws tuaj yeem ua haujlwm ntau - txheej txheem (milling, drilling, tapping)?
A: Cov pa roj carbon steel, stainless hlau, aluminium alloys, tooj dag, cam khwb cia hlau thiab lwm yam khoom siv hlau. Yog lawm, nws muaj cov qauv turret uas tuaj yeem nruab ntau yam cuab yeej ib zaug rau milling, drilling, tho txawv, reaming, tapping, thiab lwm yam., uas txo cov txheej txheem ntau lawm thiab txhim kho kev ua haujlwm ntau lawm.
Q: Yuav ua li cas tom qab- kev muag khoom tau muab, thiab lub sijhawm lav yog dab tsi?
A: Lub sijhawm lav tus qauv yog 12 lub hlis; Lub spindle, Worktable thiab lub cev muaj zog yog guaranteed rau ob xyoos. Muab 24-teev kev txhawb nqa, yees duab- kev pab daws teeb meem, muab cov khoom hloov pauv tiag tiag thiab pub dawb- ntawm- them nyiaj kev kawm ua haujlwm online; Kev saib xyuas thiab kev cob qhia hauv chaw tuaj yeem ntiav tus nqi. Cov khoom seem yuav raug xa tawm hauv ib lub lis piam.
Q: Puas yog nws tsim nyog rau cov neeg pib tshiab thiab cov kev cob qhia me me, thiab cov kev xav tau ntawm lub zog yog dab tsi?
A: Yog lawm, nws yog qhov tshwj xeeb zoo - haum rau cov tub ntxhais kawm pib thiab cov kev cob qhia me me. Ib qho yooj yim interface rau cov neeg siv thiab hom kev ua haujlwm yooj yim; Lub turret Tsim tuaj yeem ua kom yooj yim hloov pauv tau yooj yim. Compact Design Tsim nyog siv rau hauv kev cob qhia me me. Lub hwj chim ntawm 380V / 50Hz yuav tsum tau (kev lag luam zaus), lub zog loj lub cev muaj zog yog 2.2kw, lub zog- ua haujlwm tau zoo, thiab yooj yim rau kev koom ua ke rau hauv ntau qhov kev cob qhia me me.
