Shandong TaoFong CNC tshuab cuab yeej Co., Ltd. Txais tos kom yuav zoo universal kab rov tav tshuab dhos muag ntawm no los ntawm peb lub hoobkas. Kev pabcuam zoo thiab tus nqi tsim nyog muaj.

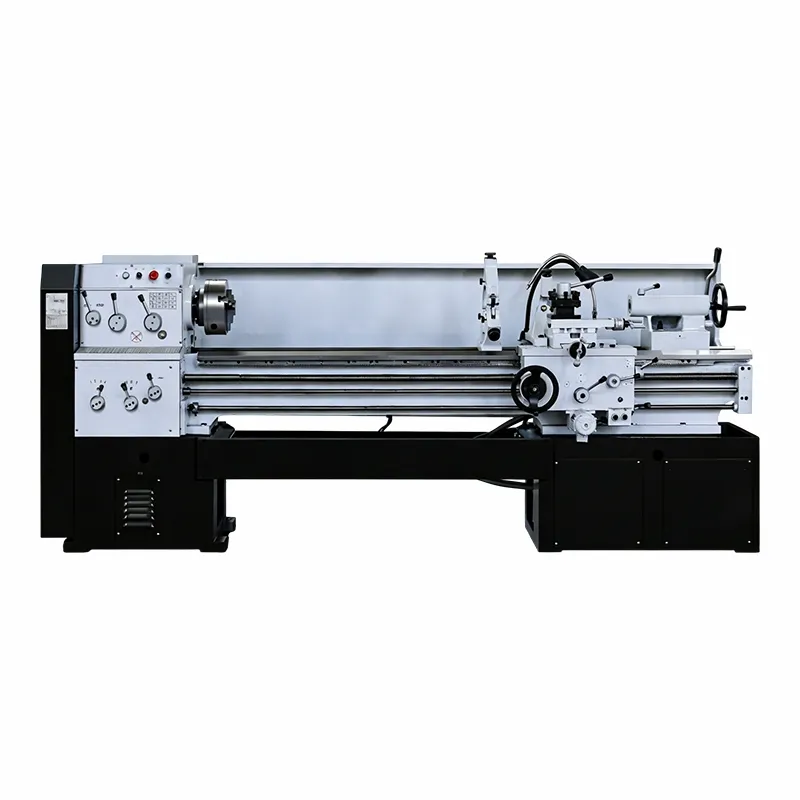

Universal kab rov tav tshuab dhos C6150 yog ib qho dav dav - lub hom phiaj nruab nrab- tonnage turnbuckle uas tuaj yeem siv los ua ntau hom hlau ua haujlwm, xws li lub tog raj kheej, cones, xov, dav hlau, qhov tiaj tus nrog lub kaum ntse ntse, thiab eccentric qhov chaw. Tsis zoo li CNC tshuab dhos thiab txhais tes dav dav- cov tshuab dhos ua haujlwm uas cais cov phau ntawv hloov tau yooj yim los ntawm kev ua haujlwm zoo lossis tsis muaj universality, qhov no tuaj yeem daws qhov tsis zoo ntawm ib qho -function- tes- ua tshuab dhos thiab kim CNC tshuab. Siab -lub zog HT250 cam khwb cia hlau, uas tuaj yeem siv los ua cov hlau xws li carbon steel, stainless hlau, aluminium alloys, bronzes thiab cam khwb cia hlau. Kev lag luam thiab kev cia siab rau kev daws teeb meem rau me me - mus rau nruab nrab - kev cob qhia me me, kho cov hauv paus, chav kawm ua haujlwm, thiab cov lag luam nrog qee zaus batch ntau lawm, sib txuas ntau yam zoo.
Khoom zoo
Universal Processing muaj peev xwm
C6150 muaj koob npe nrov rau nws cov qauv tsim thoob ntiaj teb, muaj peev xwm ntawm ntau hom kev ua haujlwm tig xws li cylindrical tig, Conical tig, xov tig (ob leeg metric thiab nti) Facing, Grooving, tho txawv thiab lwm yam. Nruab nrog ib qho dav - chuck thiab lwm yam khoom siv, txheej txheem sib txawv - cov khoom loj ntawm lub Hoobkas ntxiv.
Tus nqi -Nyob zoo & Kho yooj yim
Piv nrog CNC lathes, nws muaj 65% qis pib nqis peev thiab tsis kim CNC system tu. Ib qho yooj yim mechanical qauv nrog tsawg dua qhov ua tsis tau zoo, tsuas yog xav tau qee lub sijhawm lubrication thiab tu rau kev tu txhua hnub. Phau ntawv -lubrication System uas txuas lub tshuab- lub neej thiab txiav cov nqi kho mob yog qhov yooj yim rau kev siv.
Kev khiav hauj lwm yooj yim & Siab Flexibility
Siv cov ntawv qhia tag nrho nrog rau kev ua haujlwm tsis txaus ntseeg, uas suav nrog cov tes hloov tau - lub log thiab cim kom meej meej ceev / Pub ntsuas. Tsis tas yuav kawm CNC programming kev tshaj lij; Cov neeg pib tuaj yeem ua haujlwm ib txwm tom qab qee qhov kev kawm. Tiag - lub sij hawm hloov ntawm kev ua tsis tau yog qhov tseem ceeb muaj nuj nqi; Haum rau cov khoom siv qis, Kev Ua Haujlwm Tus Kheej, thiab kev sim ntau lawm txheej txheem piv nrog CNC lathes.
Sturdy Structure & Stable Precision
Lub tshuab txaj thiab lub taub hau cov khoom siv HT250 cam khwb cia hlau rau machining uas tau muaj hnub nyoog dag kom tshem tawm cov kev ntxhov siab sab hauv, yog li txo qis kev vibrations hauv kev ua haujlwm -thooj thaum txiav thiab ua haujlwm ruaj khov. Lub siab - qhov tseeb bearing mounted ntawm lub spindle rau txoj kev du thiab ib tug meej txhuas ntsia hlau txuas nrog rau hauv series nrog ib tug tawm tswv yim hais los xyuas kom meej qhov chaw; Qhov no ua tau raws li qhov yuav tsum tau ua rau kev ua cov khoom siv tshuab dav dav.
Cov khoom tseem ceeb technical parameters
|
SPECIFICATIONS |
Chav tsev |
C6150 C6250 |
|
Max viav vias hla lub txaj |
mm |
500 |
|
Max viav vias txoj kab uas hla hla hla swb |
mm |
330 |
|
Max viav vias hla qhov sib txawv |
mm |
~ 660 |
|
Qhov nrug nruab nrab ntawm cov chaw |
mm |
750/1000/1500/2000/3000 |
|
Spindle bore txoj kab uas hla |
mm |
52 (Tshooj 80) |
|
Spindle bore taper |
- |
MT6 (Opt. Metric 1:20) |
|
Spindle ceev ntau yam |
rpm ua |
40-1400 |
|
Spindle ceev cov kauj ruam |
- |
9 |
|
Hla swb mus ncig |
mm |
250 |
|
Cov cuab yeej tshaj tawm kev mus ncig |
mm |
95 |
|
Tool loj |
mm |
20*20 |
|
Longitudinal pub ntau yam |
mm/r |
0.0832-4.6569 |
|
Hla pub ntau yam |
mm/r |
0.048-2.688 |
|
Hom metric threads |
hom |
19 |
|
Ntau yam ntawm metric threads |
mm |
0.25-14 |
|
Hom ntiv tes threads |
hom |
28 |
|
Qhov ntau ntawm nti threads |
T.P.I. |
2-40 |
|
Hom threads module |
hom |
17 |
|
Ntau yam ntawm threads module |
M.P. |
0.25-3.5 |
|
Tailstock quill diam |
mm |
65 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill mus ncig |
mm |
130 |
|
Main lub cev muaj zog |
kws |
5.5 |
|
Coolant lub cev muaj zog |
kws |
0.09 |
|
Nyhav rau 750 |
kg |
1250 |
|
Nyhav rau 1000 |
kg |
1350 |
|
Nyhav rau 1500 |
kg |
1550 |
|
Nyhav rau 2000 |
kg |
1750 |
|
Nyhav rau 3000 |
kg |
1950 |
|
Dimension rau 750 |
mm |
2200*1140*1650 |
|
Dimension rau 1000 |
mm |
2400*1140*1650 |
|
Dimension rau 1500 |
mm |
2900*1140*1650 |
|
Dimension rau 2000 |
mm |
3400*1140*1650 |
|
Dimension rau 3000 |
mm |
4400*1140*1650 |
Tshuab Txheem Paub meej
PRECISION CHUCK
Standard: 3-lub puab tsaig phau ntawv chuck
QUENCHING BED
1. Nruab nrab zaus quenching qhia rail
2. 360mm dav qhia
SPINDLE BOX
1. Iav tsav
2. 52mm spindle bore raws li tus qauv,
80mm spindle bore raws li kev xaiv
TSEEM CEEB
Standard: 4 txoj hauj lwm phau ntawv cuab yeej ncej
GEARBOX
High precision iav kis tau tus mob
Muaj zog txiav quab yuam
TAILSTOK STOCK
Standard: Phau ntawv tailstock.
Daim ntawv thov Scenario
Me-rau- Kev cob qhia nruab nrab:Qhov zoo tshaj plaws rau me me -rau- kev cob qhia nruab nrab koom nrog ntau- ntau yam, me- ua cov hlau ua, xws li cov khoom siv kho vajtse, cov khoom siv kho tshuab, thiab cov khoom siv. Nws muaj peev xwm ua tiav thoob ntiaj teb thiab tus nqi qis hloov mus rau ntau yam kev xav tau ntau yam nrog cov peev nyiaj tsawg.
Cov Tsev Kawm Ua Haujlwm Ua Haujlwm: Siv dav rau Cov Tsev Kawm Ntawv Ua Haujlwm thiab Chaw Ua Haujlwm rau Cov Chav Kawm Machining. Kev Ua Haujlwm Yooj Yim pab cov tub ntxhais kawm kawm paub cov cuab yeej ua haujlwm yooj yim, tuav lub tshuab dhos yooj yim nrog rau npaj mus kawm ntxiv CNC tshuab dhos.
Equipment Maintenance Centers:Siv nyob rau hauv lub Hoobkas txij nkawm kev cob qhia rau kev kho cov khoom siv kho tshuab (shafts, tes tsho, iav). Kev ua haujlwm yooj yim tuaj yeem ua tiav sai thiab kho cov khoom puas kom txo tau cov khoom siv hluav taws xob thiab cov nqi kho mob.
Small -Batch Custom & Trial-Production:Haum rau me me -batch custom processing ntawm tsis yog -tus qauv qhov chaw thiab mus sib hais- tsim cov khoom tshiab. Kho tam sim ntawd raws li ntau yam workpiece xav tau kom muaj kev ua haujlwm zoo thiab tswj tus nqi.
FAQ
Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm universal kab rov tav tshuab dhos C6150?
A: Qhov siab tshaj plaws viav vias ntawm txaj 500 hli, tig Length 750-3000mm. Spindle ceev: 40 ~ 1400 rpm; Spindle bore Txoj kab uas hla: 52 hli; Chuck Diameter: 250mm (manually ua 3-lub puab tsaig); Net nyhav 1250KGS, thawj lub cev muaj zog ntawm 5.5KW.
Q: Dab tsi yog qhov txawv ntawm C6150 thiab cov tshuab dhos zoo tib yam?
A: C6150 muaj lub zog dav dav dua - lub hom phiaj muaj peev xwm ua cov khoom eccentric thiab ntau qhov tshwj xeeb ntawm cov xov; Ib qho yooj yim phau ntawv tshuab dhos tsuas tuaj yeem ua ib qho haujlwm xwb. Nws kuj yog qhov loj me me thiab ruaj khov.
Q: Cov ntaub ntawv dab tsi tuaj yeem ua tau, thiab nws puas tuaj yeem tuav cov khoom eccentric?
A: Cov txheej txheem carbon steel, stainless hlau, aluminium alloy, tooj dag thiab cam khwb cia hlau, thiab lwm yam. Yog lawm, nws tuaj yeem ua cov khoom eccentric nrog cov khoom siv thiab muaj ntau yam kev siv.
Q: Nws puas haum rau cov pib tshiab, thiab yuav kawm ntev npaum li cas?
A: Yog, Nws Yog Tus Pib Pib- phooj ywg. Tom qab qee qhov kev cob qhia, cov neeg pib tshiab yuav tuaj yeem ua haujlwm tau zoo thiab tig cov khoom me me.
Q: Dab tsi tom qab - kev muag khoom tau muab?
A: Txheem warranty rau ib xyoos. Muab kev txhawb nqa hauv online, tiag -lub sijhawm khoom seem thiab tsis muaj- kev cob qhia ua haujlwm raug nqi. Kev kho ntawm qhov chaw los ntawm tus neeg muag khoom yog muaj, thiab ib feem tshiab tuaj yeem xa tuaj hauv ib hnub.
